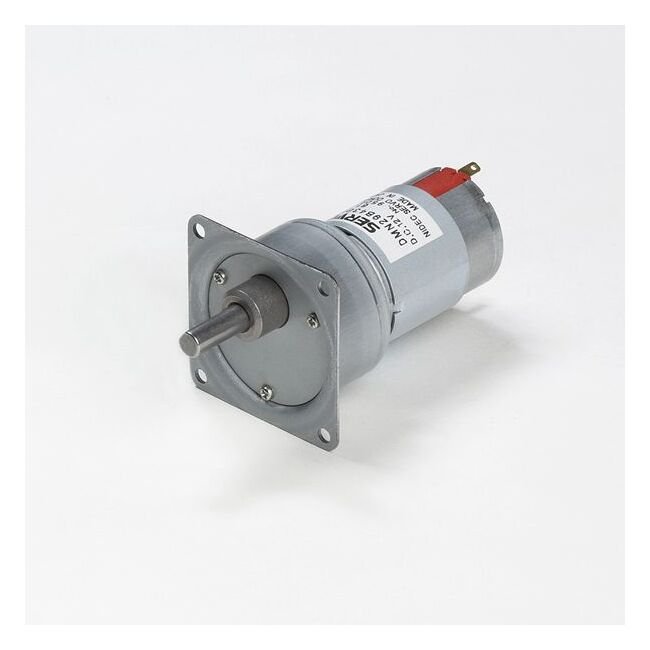

The DMN29 43G Series DC Brush Motor with Intermittent Operation is engineered for durability and efficiency, capable of over 1 million cycles with an optimized brush design. With a continuous operating life of 3000 hours, this motor delivers high output through superior heat dissipation and resistance. Its robust construction provides high radial load capacity, complemented by a large selection of gear heads and reduction ratios for versatile applications. Additionally, features like low noise, increased insulation, and optional magnetic revolution sensor and noise filter enhance its functionality.
Product Specifications
Additional Information 0
DMN29 43G Series DC Brush Motors with Intermittent Operation | DMN29 43G Series DC Brush Motors with Intermittent Operation (DMN29B43G60A) | DMN29 L Series DC Brush Motors with Intermittent Operation (DMN29B) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Frame Size
43 x 43 mm | 1.693 x 1.693 in
Specifications Gear Ratio
60
Specifications L1
2.571 in | 65.3 mm
Specifications L2
0.917 in | 23.3 mm
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
43.1 oz·in | 0.30 N·m
Specifications Series
DMN29
Specifications Speed
61.7 r/min
Specifications Voltage Dc
12 V
Specifications Weight
190 g | 0.42 lb
