High-Performance DMN37 8DG Brush Motors
High-Performance DMN37 8DG Brush Motors
SKU:PER-105976
Discover the dependable DMN37 8DG Brush Motors with enhanced durability and efficiency for your applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
High-Performance DMN37 8DG Brush Motors
$249.99
Quantity: 1
Claim Your Seller Account
High-Performance DMN37 8DG Brush Motors
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

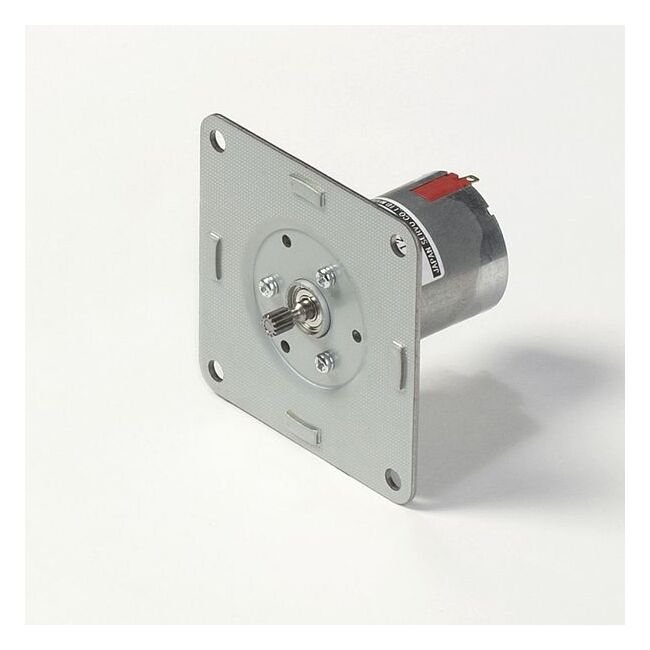

The DMN37 8DG Series DC Brush Motors with Continuous Operation are engineered for exceptional durability and efficiency. With a design optimized for longevity, these motors offer continuous operation over 1 million cycles and a lifespan of 3000 hours. Featuring high heat dissipation and resistance, robust construction for increased radial load capacity, and low noise operation, these motors deliver superior performance. Choose from a wide selection of gear heads and reduction ratios to suit various needs. Ideal for applications requiring reliability and high output.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
DMN37 8DG Series DC Brush Motors with Continuous Operation | DMN37 8DG Series DC Brush Motors with Continuous Operation (DMN37B8HPA) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Bolt
M5 x 50 mm | M5 x 1.967 in
Specifications Frame Size
80 x 80 mm | 3.15 x 3.15 in
Specifications Gear Ratio
120
Specifications L1
86.7 mm | 3.413 in
Specifications L2
32 mm | 1.260 in
Specifications Note
When ordering, please write the motor model and gearbox model numbers separately, as in the following example:DMN37B8HPB (Pinion shaft motor)8DG_ (Gearbox)Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
181 oz·in | 1.3 N·m
Specifications Series
DMN37
Specifications Speed
39 r/min
Specifications Voltage
12 V
Specifications Weight
780 g | 1.7 lb
