High-Performance DMN37 8DG DC Brush Motor with Continuous Operation
High-Performance DMN37 8DG DC Brush Motor with Continuous Operation
SKU:PER-610fe4
High-performance DMN37 8DG DC Brush Motor for continuous, reliable operation.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
High-Performance DMN37 8DG DC Brush Motor with Continuous Operation
$189.99
Quantity: 1
Claim Your Seller Account
High-Performance DMN37 8DG DC Brush Motor with Continuous Operation
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

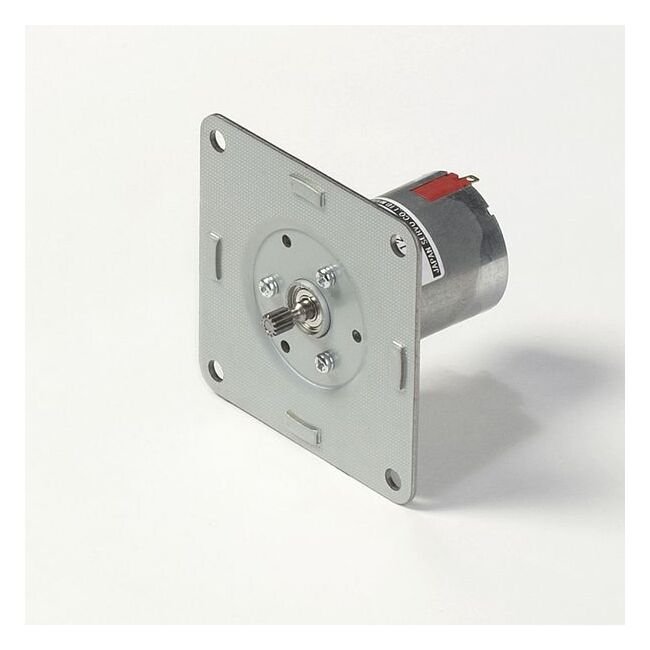

The DMN37 8DG Series DC Brush Motor is engineered for durability with a long-life performance, capable of over 1 million cycles of intermittent operation. Its robust design ensures continuous operation for up to 3000 hours, delivering high output with excellent heat dissipation and resistance. Featuring a large diameter output shaft, ball bearings, and high radial load capacity, this motor ensures high strength and reliability. With low noise levels, increased insulation, and a variety of gear head options with different reduction ratios available, this motor is versatile and meets diverse institutional procurement standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
DMN37 8DG Series DC Brush Motors with Continuous Operation | DMN37 8DG Series DC Brush Motors with Continuous Operation (DMN37B8HPA) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Bolt
M5 x 50 mm | M5 x 1.967 in
Specifications Frame Size
80 x 80 mm | 3.15 x 3.15 in
Specifications Gear Ratio
100
Specifications L1
86.7 mm | 3.413 in
Specifications L2
32 mm | 1.260 in
Specifications Note
When ordering, please write the motor model and gearbox model numbers separately, as in the following example:DMN37B8HPB (Pinion shaft motor)8DG_ (Gearbox)Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
153 oz·in | 1.1 N·m
Specifications Series
DMN37
Specifications Speed
47 r/min
Specifications Voltage
12 V
Specifications Weight
780 g | 1.7 lb
