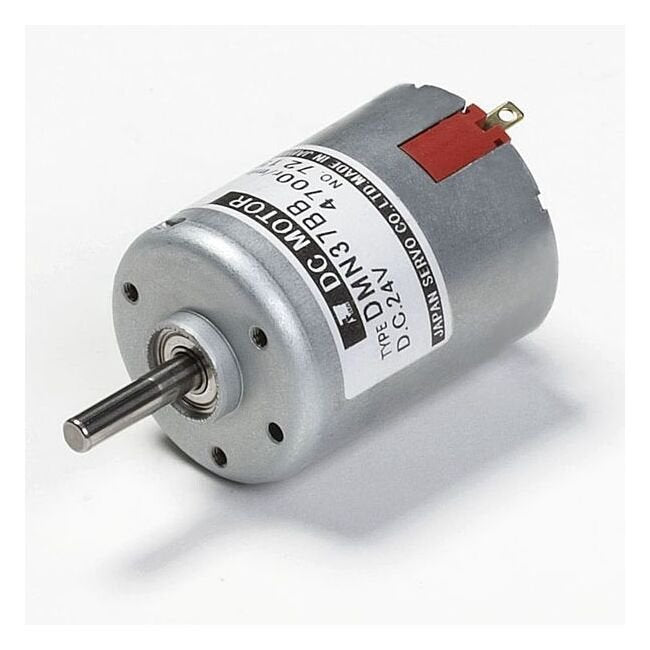

High-Performance DMN37 Brush DC Motor
High-Performance DMN37 Brush DC Motor
SKU:PER-8ed2d7
Premium DMN37 Series DC Brush Motors - Durable, efficient, and customizable for varied applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High-Performance DMN37 Brush DC Motor
$129.99
Quantity: 1
Claim Your Seller Account
High-Performance DMN37 Brush DC Motor
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DMN37 Series DC Brush Motors are engineered for durability and efficiency, with an intermittent operation capability of over 1 million cycles. Designed with optimized brush technology, these motors offer a long continuous operating life of 3000 hours. Featuring high output and heat dissipation, these motors provide exceptional performance in demanding environments. With low noise operation and increased insulation, they offer reliability and precision. Choose from a wide selection of gear heads and reduction ratios to suit various applications. Consider custom designs to meet specific requirements.
Product Specifications
Additional Information 0
Connection Diagram | DMN37 Series DC Brush Motors (DMN37BB) | Magnectic Type Revolution Sensor | Motor Selection Guide | Optical Type Revolution Sensor
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Current No Load
0.13 A
Specifications Current Rating
530 mA | 0.53 A
Specifications Diameter
1.102 in | 28 mm
Specifications L1
53.2 mm | 2.094 in
Specifications L2
47.5 mm | 1.870 in
Specifications Note
Intermittent ratings are given for DMN37JB. (DUTY50%)
Specifications Product Type
DC Brush Motor
Specifications Rated Output
7.2 W
Specifications Rated Speed
4700 r/min
Specifications Rated Torque
14.7 mN·m | 2.09 oz·in
Specifications Series
DMN37
Specifications Speed No Load
5500 r/min
Specifications Stall Torque
98 mN·m | 13.89 oz·in
Specifications Voltage Dc
24 V
Specifications Weight
180 g | 0.40 lb
Torque Curve 0
