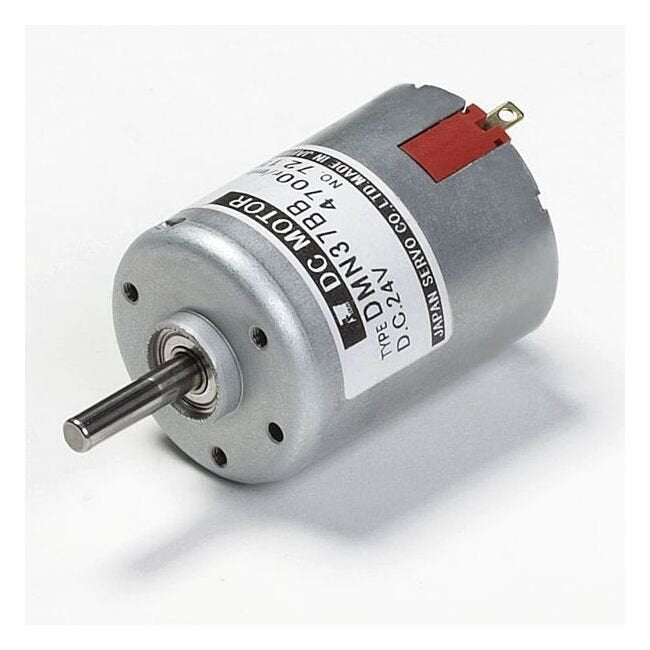

High-Performance DMN37 Series DC Brush Motor
High-Performance DMN37 Series DC Brush Motor
SKU:PER-e7788e
Enhanced DMN37 Series DC Brush Motor with long-lasting performance and high efficiency. Choose reliability!
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High-Performance DMN37 Series DC Brush Motor
$89.99
Quantity: 1
Claim Your Seller Account
High-Performance DMN37 Series DC Brush Motor
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DMN37 Series DC Brush Motor is engineered for durability and reliability, boasting a long operating life of over 1 million cycles. With optimized brush design, this motor ensures continuous operation for up to 3000 hours. Its high heat dissipation and resistance lead to increased output, while its robust construction and large diameter output shaft provide exceptional strength. Enjoy low noise and improved insulation with new resin brush holders. Choose from a wide selection of gear heads and reduction ratios to suit diverse needs. Optional features include a magnetic revolution sensor and noise filter for enhanced functionality.
Product Specifications
Additional Information 0
Connection Diagram | Magnectic Type Revolution Sensor | Motor Selection Guide | Optical Type Revolution Sensor
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Current No Load
0.16 A
Specifications Current Rating
940 mA | 0.94 A
Specifications Diameter
1.102 in | 28 mm
Specifications L1
63.2 mm | 2.488 in
Specifications L2
57.5 mm | 2.264 in
Specifications Note
Intermittent ratings are given for DMN37JB. (DUTY50%)
Specifications Product Type
DC Brush Motor
Specifications Rated Output
14.7 W
Specifications Rated Speed
3600 r/min
Specifications Rated Torque
39.2 mN·m | 5.56 oz·in
Specifications Series
DMN37
Specifications Speed No Load
4300 r/min
Specifications Stall Torque
240 mN·m | 24.72 oz·in
Specifications Voltage Dc
24 V
Specifications Weight
240 g | 0.53 lb
Torque Curve 0
