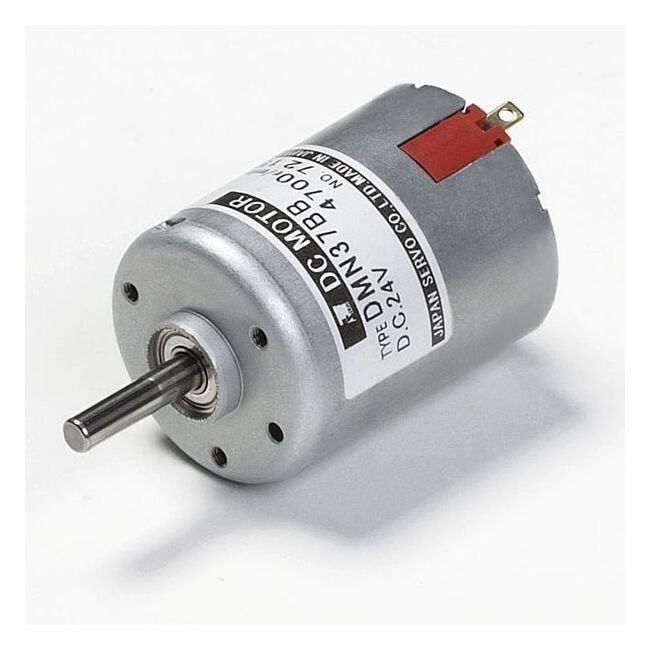

High-Performance DMN37 Series DC Brush Motors
High-Performance DMN37 Series DC Brush Motors
SKU:PER-f2e946
Experience durability and optimal performance with the DMN37 Series DC Brush Motors - High output, low noise, and robust construction.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
High-Performance DMN37 Series DC Brush Motors
$79.99
Quantity: 1
Claim Your Seller Account
High-Performance DMN37 Series DC Brush Motors
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DMN37 Series DC Brush Motors are engineered for exceptional durability, offering a long operational life of over 1 million cycles with optimized brush design. With a continuous operating life of 3000 hours, these motors boast high output levels thanks to superior heat dissipation and resistance. The robust construction provides high radial load capacity, supported by a large diameter output shaft and ball bearings. Enjoy low noise operation and enhanced insulation with resin brush holders. This versatile motor offers a wide selection of gear heads and reduction ratios to meet diverse operational needs, including options with magnetic revolution sensors and noise filters.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Connection Diagram | Magnectic Type Revolution Sensor | Motor Selection Guide | Optical Type Revolution Sensor
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Current No Load
0.27 A
Specifications Current Rating
1200 mA | 1.20 A
Specifications Diameter
1.102 in | 28 mm
Specifications L1
58.2 mm | 2.291 in
Specifications L2
52.5 mm | 2.067 in
Specifications Note
Intermittent ratings are given for DMN37JB. (DUTY50%)
Specifications Product Type
DC Brush Motor
Specifications Rated Output
9.2 W
Specifications Rated Speed
3600 r/min
Specifications Rated Torque
24.5 mN·m | 3.48 oz·in
Specifications Series
DMN37
Specifications Speed No Load
4300 r/min
Specifications Stall Torque
160 mN·m | 23.61 oz·in
Specifications Voltage Dc
12 V
Specifications Weight
210 g | 0.46 lb
Torque Curve 0
