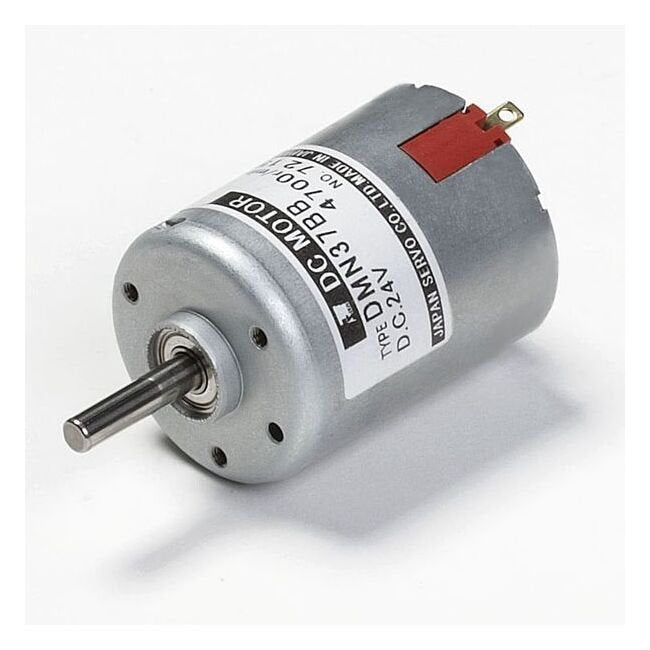

High-Performance DMN37 Series DC Brush Motors
High-Performance DMN37 Series DC Brush Motors
SKU:PER-91f44e
Enhanced DMN37 Series DC Brush Motors - Long-lasting, high output & versatile. Perfect for diverse applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High-Performance DMN37 Series DC Brush Motors
$89.99
Quantity: 1
Claim Your Seller Account
High-Performance DMN37 Series DC Brush Motors
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience the unparalleled performance of the DMN37 Series DC Brush Motors, engineered for longevity and high output. With over 1 million cycles of intermittent operation, continuous running for 3000 hours, and a robust design, these motors deliver exceptional radial load capacity, low noise, and enhanced insulation. The inclusion of various gear heads and reduction ratios ensures versatile applications. Choose reliability and efficiency with the DMN37 series, equipped with optional features like magnetic revolution sensors and noise filters.
Product Specifications
Additional Information 0
Connection Diagram | Magnectic Type Revolution Sensor | Motor Selection Guide | Optical Type Revolution Sensor
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Current No Load
0.26 A
Specifications Current Rating
780 mA | 0.78 A
Specifications Diameter
1.102 in | 28 mm
Specifications L1
45.2 mm | 1.780 in
Specifications L2
39.5 mm | 1.555 in
Specifications Note
Intermittent ratings are given for DMN37JB. (DUTY50%)
Specifications Product Type
DC Brush Motor
Specifications Rated Output
4.6 W
Specifications Rated Speed
4500 r/min
Specifications Rated Torque
9.8 mN·m | 1.39 oz·in
Specifications Series
DMN37
Specifications Speed No Load
5500 r/min
Specifications Stall Torque
54 mN·m | 7.64 oz·in
Specifications Voltage Dc
12 V
Specifications Weight
130 g | 0.29 lb
Torque Curve 0
