High-Performance Double Edge Ring Assembly System
High-Performance Double Edge Ring Assembly System
SKU:SSP-3bb3ea
Discover versatile and efficient Assembled Double Edge Ring System for seamless disengagement, precise dimensions, and superior performance.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
High-Performance Double Edge Ring Assembly System
$1,299.99
Quantity: 1
Claim Your Seller Account
High-Performance Double Edge Ring Assembly System
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Assembled Double Edge Ring System by HepcoMotion offers versatile functionality suitable for various applications. This system, comprising a double edge ring with carriages, can be utilized in complete ring form or segmented configurations. Compatible with J54 bearings, this system features precise dimensions including A (1267mm), B (76mm), D (172.8mm), E (58.5mm), and more. The PRT2 eccentric bearings enable seamless disengagement without extensive disassembly, enhancing maintenance efficiency and operational flexibility. Ideal for creating intricate track systems, this solution ensures reliable performance and easy integration, meeting the stringent requirements of institutional and government procurements.

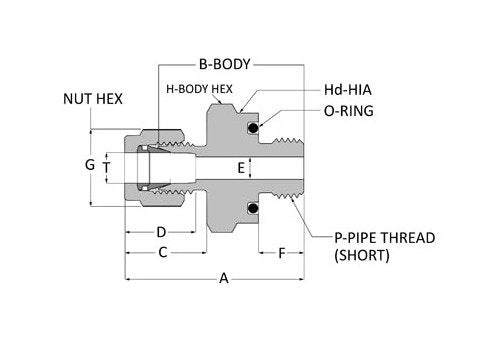

Product Specifications
Dimensions A
1.51 in
Dimensions As568 O Ring Uniform Size Number
-113
Dimensions B
1.22 in
Dimensions C
0.70 in
Dimensions D
0.60 in
Dimensions E
0.19 in
Dimensions F
0.38 in
Dimensions G
9/16 in
Dimensions H
15/16 in
Dimensions Hd
0.93 in
Dimensions P
1/4 in
Dimensions T
1/4 in
Specifications Body Material
Brass
Specifications Brand Series
Duolok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Duolok Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
O-ring Seal Modified MNPT
Specifications End Connections
TF x O-ring Seal Modified MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
11.81 USD
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Duolok® Tube Fittings
