High-Performance Dual Bobbin Power Transformers
High-Performance Dual Bobbin Power Transformers
SKU:POW-0a6caf
Enhance your power system with compliant, efficient transformers.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High-Performance Dual Bobbin Power Transformers
$129.99
Quantity: 1
Claim Your Seller Account
High-Performance Dual Bobbin Power Transformers
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

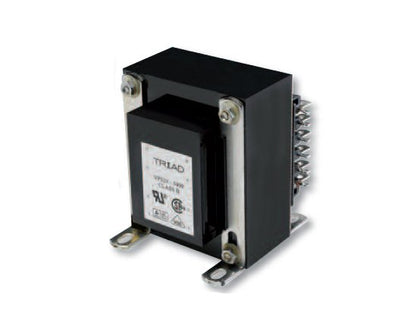

Upgrade your power system with our Chassis Mount Quick-Connect World Series™ Power Transformers. Designed to meet stringent U.S. and International standards, including CSA, IEC, TUV, and UL requirements, these transformers feature a dual bobbin design within an insulating shroud. The UL-approved high-temperature material construction eliminates the need for electrostatic shielding, ensuring minimal capacitance between coils. Both electrically isolated primary and secondary winding configurations provide enhanced safety. Available in various sizes from 25 VA to 175 VA with convenient 'quick connect' terminations, these transformers offer reliable and efficient power distribution for a range of applications.
Product Specifications
Specifications Depth D
2 13/16 in
Specifications Dimension B
1 5/8 in
Specifications Dimension C
3/8 in
Specifications Dimension T
1/4 in
Specifications Electrical Rating
175 V·A
Specifications Height H
3 3/4 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/2 in
Specifications Mounting Width
2 1/2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
5.0 V at 35.0 A
Specifications Secondary Series
10.0 V CT at 17.5 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
5.50 lb
Specifications Width W
3 1/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
