High-Performance Four Point Contact Ball Bearings
High-Performance Four Point Contact Ball Bearings
SKU:ANG-258c56
Precision-engineered Four Point Contact Ball Bearings for reliable performance in industrial and government applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
High-Performance Four Point Contact Ball Bearings
$189.99
Quantity: 1
Claim Your Seller Account
High-Performance Four Point Contact Ball Bearings
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

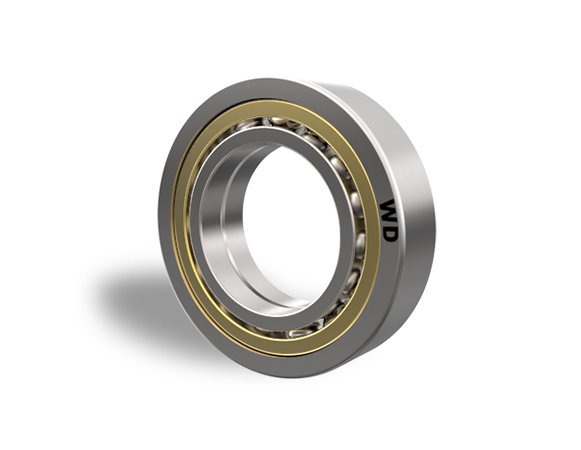

Our Four Point Contact Ball Bearings are engineered for precision and durability, featuring bore diameter of 95mm, outside diameter of 200mm, and load ratings of 269 kN (Dynamic) and 287 kN (Static). With a grease limiting speed of 2600 rpm and oil limiting speed of 3600 rpm, these bearings offer reliable performance under varying conditions. Compliant with Federal/DoD procurement standards, these bearings are ideal for industrial and government applications requiring high-quality angular contact ball bearings.
Product Specifications

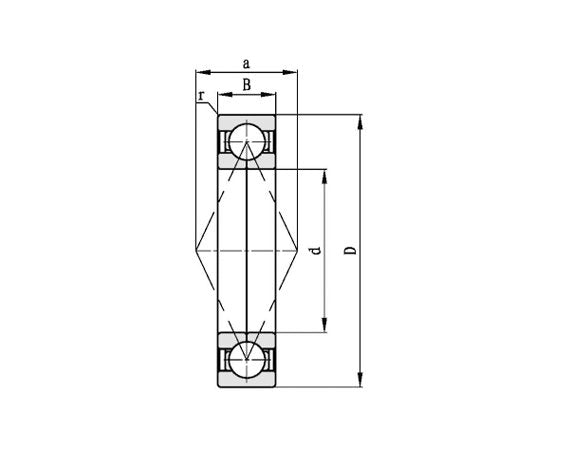

Boundary Dimensions Bore Diameter
95 mm
Boundary Dimensions Minimum Dimension R
3 mm
Boundary Dimensions Outside Diameter
200 mm
Boundary Dimensions Overall Bearing Width
45 mm
Limiting Speed Grease Limiting Speed
2600 rpm
Limiting Speed Oil Limiting Speed
3600 rpm
Load Rating Dynamic Cr Load Rating
269 kN
Load Rating Static Cor Load Rating
287 kN
Shoulder Dimensions Maximum Shoulder Dimension Da
186 mm
Shoulder Dimensions Maximum Shoulder Dimension Ra
2.5 mm
Shoulder Dimensions Minimum Shoulder Dimension Da
109 mm
Specifications Approximate Mass
7.37 kg
Specifications Distance Of Working Points A
103.3 mm
