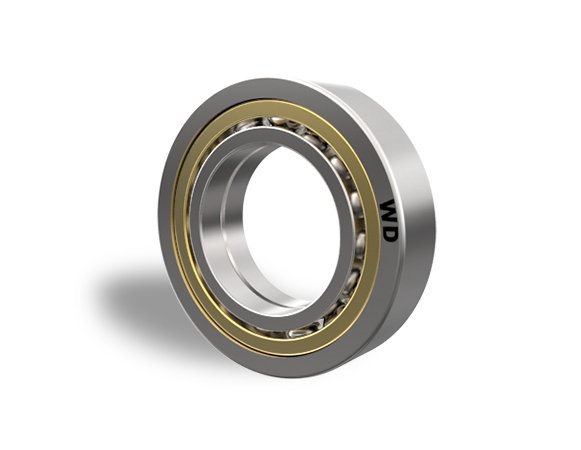

High-Performance Four Point Contact Ball Bearings
High-Performance Four Point Contact Ball Bearings
SKU:ANG-834e9e
Precision-engineered Four Point Contact Ball Bearings for superior performance. Bore Diameter: 60mm, Load Rating: 145kN
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High-Performance Four Point Contact Ball Bearings
$129.99
Quantity: 1
Claim Your Seller Account
High-Performance Four Point Contact Ball Bearings
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Four Point Contact Ball Bearings are precision-engineered to deliver exceptional performance in high-demand applications. With a bore diameter of 60 mm, outside diameter of 130 mm, and a dynamic load rating of 145 kN, these bearings ensure reliability and durability. Meeting stringent federal procurement standards, these bearings are designed to excel in demanding environments while offering smooth operation and extended service life.

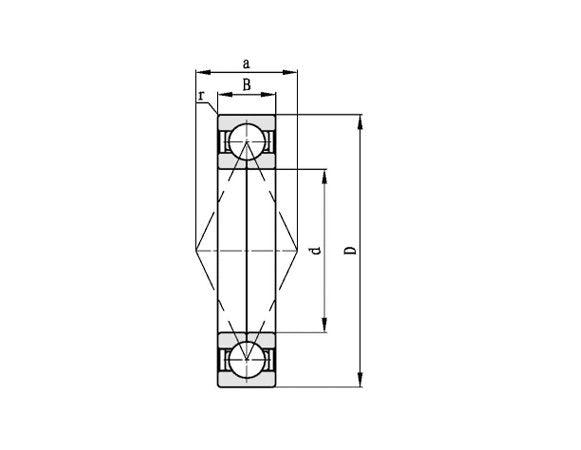

Product Specifications
Boundary Dimensions Bore Diameter
60 mm
Boundary Dimensions Minimum Dimension R
2.1 mm
Boundary Dimensions Outside Diameter
130 mm
Boundary Dimensions Overall Bearing Width
31 mm
Limiting Speed Grease Limiting Speed
4100 rpm
Limiting Speed Oil Limiting Speed
5700 rpm
Load Rating Dynamic Cr Load Rating
145 kN
Load Rating Static Cor Load Rating
126 kN
Shoulder Dimensions Maximum Shoulder Dimension Da
118 mm
Shoulder Dimensions Maximum Shoulder Dimension Ra
2 mm
Shoulder Dimensions Minimum Shoulder Dimension Da
72 mm
Specifications Approximate Mass
2.17 kg
Specifications Distance Of Working Points A
67.2 mm
