High Performance High Voltage Coaxial/Shielded Cable - 20 AWG, 40 kVDC
High Performance High Voltage Coaxial/Shielded Cable - 20 AWG, 40 kVDC
SKU:HIG-21f2c6
High voltage coaxial/shielded cable for military, industrial, and high voltage applications. Controlled impedance, low capacitance, and reliable Tin Plated Copper conductors.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Performance High Voltage Coaxial/Shielded Cable - 20 AWG, 40 kVDC
$29.99
Quantity: 1
Claim Your Seller Account
High Performance High Voltage Coaxial/Shielded Cable - 20 AWG, 40 kVDC
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

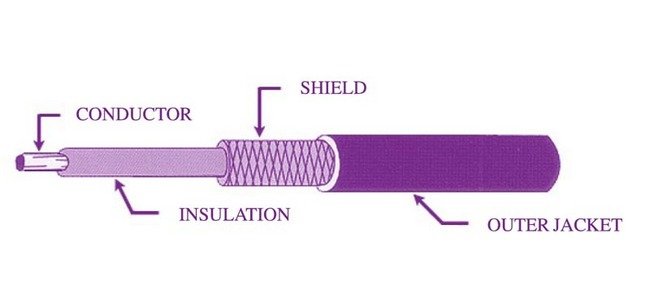

Experience unrivaled reliability and performance with our High Voltage Coaxial/Shielded Cable. Ideal for military, industrial, and high voltage applications, each cable offers controlled impedance, low capacitance, and high impedance characteristics. With shielded strands for enhanced protection, these cables ensure fast response times and precise connectivity for critical systems like Radar, ECM, and power supplies. Pre-conditioned with FEP insulation, our cables deliver stability and durability under extreme conditions. Available in various lengths and featuring Tin Plated Copper conductors, these cables meet the highest standards for quality and safety.
Product Specifications
Cable Wire Properties Etched
No
Cable Wire Properties Nomex Jacketed
Yes
Cable Wire Properties Silicone Coated
No
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Cable Wire Properties Wire Type
Shielded
Shielding Properties Shielding Layers
1
Shielding Properties Shielding Strands
36 AWG
Shielding Properties Shielding Strand Plating
Tin Plated Copper
Specifications Capacitance At 1k Hz
26 pF/ft
Specifications Conductor Diameter
0.039 in | 0.220 in
Specifications Conductor Gauge
20 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Tin Plated
Specifications Conductor Strands
19/32
Specifications Default Color
Natural
Specifications Diameter Over Insulation
0.150 in
Specifications Diameter Over Jacket
0.220 in
Specifications Diameter Over Shield
0.180 in
Specifications Insulator Material
FEP
Specifications Jacket Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.220 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
40 kVDC
