High-Performance HT50 Series Ceramic Capacitors
High-Performance HT50 Series Ceramic Capacitors
SKU:CER-0811ad
High-performance HT50 Series Ceramic Capacitors with 75 pF capacitance, 7.5 kV dielectric strength, and broad frequency range.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High-Performance HT50 Series Ceramic Capacitors
$29.99
Quantity: 1
Claim Your Seller Account
High-Performance HT50 Series Ceramic Capacitors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HT50 Series Ceramic Capacitors are designed for precision performance in demanding applications. With a capacitance of 75 pF and a high dielectric strength of 7.5 kV, these capacitors ensure reliable operation across a wide frequency range from 0.754 MHz to 19.9 MHz. The robust construction and thread specifications (6-32 UNC-2B 5/32 min deep) make them ideal for industrial and institutional use. Compliant with Federal procurement standards and GSA requirements, these capacitors offer exceptional quality and reliability for mission-critical projects.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Cap
75 pF
Specifications Dielectric Tc
N750
Specifications Fh
19.9 MHz
Specifications Fl
0.754 MHz
Specifications Imax Rms
9.7 A
Specifications Smax
10 kV·A
Specifications Thread

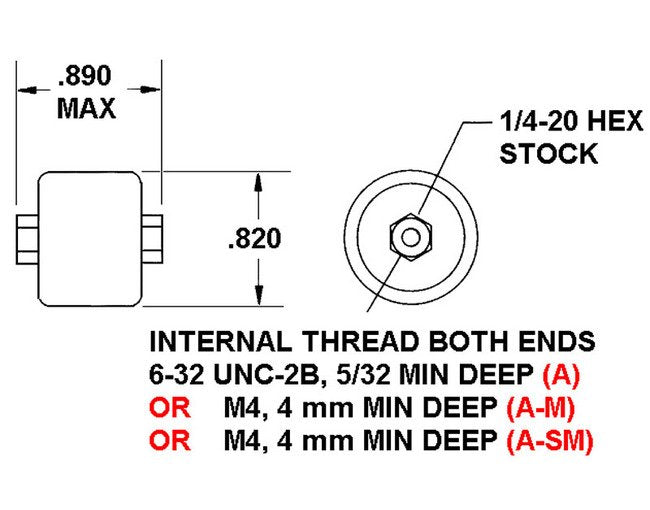

6-32 UNC-2B 5/32 min deep
Specifications Vmax Dc
7.5 kV
