Upgrade your electronic systems with the HT50 Series Ceramic Capacitors designed for superior performance and reliability. These capacitors feature a capacitance of 170 pF, N750 dielectric, and a maximum DC voltage of 7.5 kV, making them ideal for demanding applications. With a frequency range from 0.333 MHz to 10.1 MHz and a maximum RMS current of 10.4 A, these capacitors ensure stable operation under varying load conditions. The threaded design with 6-32 UNC-2B specifications guarantees secure connections, meeting stringent industry standards for quality and durability.
Product Specifications
Specifications Cap
170 pF
Specifications Dielectric Tc
N750
Specifications Fh
10.1 MHz
Specifications Fl
0.333 MHz
Specifications Imax Rms
10.4 A
Specifications Smax
10 kV·A

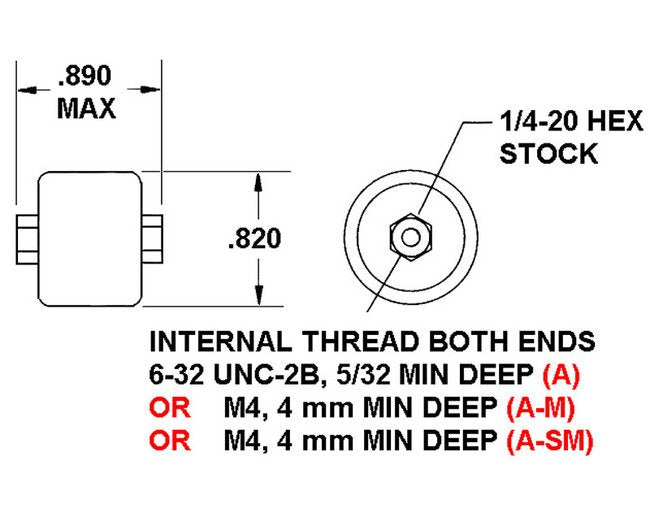

Specifications Thread
6-32 UNC-2B 5/32 min deep
Specifications Vmax Dc
7.5 kV
