High-Performance HT50 Series Ceramic Capacitors
High-Performance HT50 Series Ceramic Capacitors
SKU:CER-440ddb
High-performance HT50 Series Ceramic Capacitors with 300 pF capacitance, 7.5 kV DC rating, and 6-32 UNC-2B thread.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High-Performance HT50 Series Ceramic Capacitors
$24.99
Quantity: 1
Claim Your Seller Account
High-Performance HT50 Series Ceramic Capacitors
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior performance with our HT50 Series Ceramic Capacitors. These capacitors feature a capacitance of 300 pF, N3300 dielectric, and a DC voltage rating of 7.5 kV, making them ideal for demanding applications where reliability is key. With a frequency range from 0.188 MHz to 2.90 MHz and a maximum current rating of 7.4 A, these capacitors ensure stable operation under varying conditions. The 6-32 UNC-2B threaded design with a minimum depth of 5/32 guarantees secure installation. Trust our HT50 Series for exceptional quality and durability.
Product Specifications
Specifications Cap
300 pF
Specifications Dielectric Tc
N3300
Specifications Fh
2.90 MHz
Specifications Fl
0.188 MHz
Specifications Imax Rms
7.4 A
Specifications Smax
10 kV·A
Specifications Thread

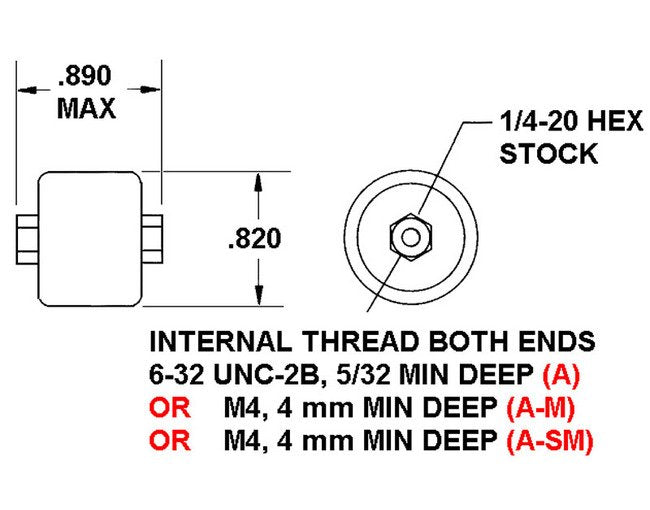

6-32 UNC-2B 5/32 min deep
Specifications Vmax Dc
7.5 kV
