High-Performance HT53 Series 7 kVA Max Power Ceramic Capacitors

Name: High-Performance HT53 Series 7 kVA Max Power Ceramic Capacitors
Brand: High Energy Corp.
SKU: CER-0fb46a
Price: 39.99 USD
Availability: OutOfStock

SKU:CER-0fb46a

Enhance your systems with the high-performance HT53 Series 7 kVA Capacitors. Voltage: 5 kVDC, Capacitance: 1-40 pF, Dielectric: N750, Terminals: Threaded/Wire. Perfect for industrial & institutional applications.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

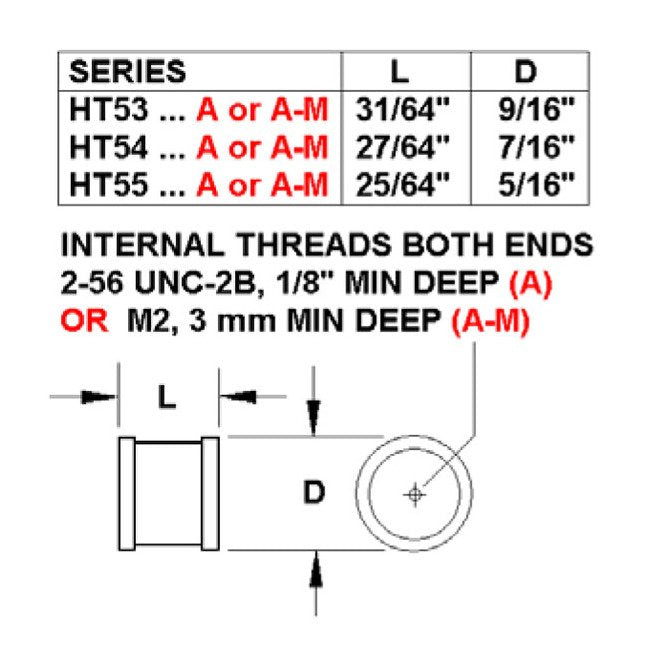

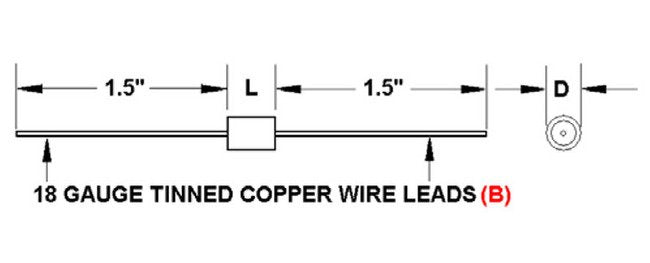

The HT53 Series Ceramic Capacitors deliver exceptional performance with a working voltage of 5 kVDC and a maximum power of 7 kVA. These capacitors feature capacitance ranging from 1 to 40 pF, threaded terminals or wire leads for versatility, and are available in Class I NP0 or N750 TC dielectric. With dimensions of 7/16 in (L) and 1/2 in (D), these capacitors are engineered for reliability and precision, making them ideal for demanding applications in industrial and institutional settings.

Product Specifications

Specifications Cap

40 pF

Specifications Dielectric Tc

N750

Specifications Dimension D

1/2 in

Specifications Dimension L

7/16 in

Specifications Fh

15.4 MHz

Specifications Fl

2.23 MHz

Specifications Imax Rms

5.2 A

Specifications Smax

7 kV·A

Specifications Thread

#18

Specifications Vmax Dc

5 kV
