High-Performance HXF Fluoropolymer Heaters
High-Performance HXF Fluoropolymer Heaters
SKU:HEA-c31090
Powerful 3000W HXF Fluoropolymer Heaters for industrial applications, 480V, durable construction, certified for safety.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
High-Performance HXF Fluoropolymer Heaters
$499.99
Quantity: 1
Claim Your Seller Account
High-Performance HXF Fluoropolymer Heaters
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

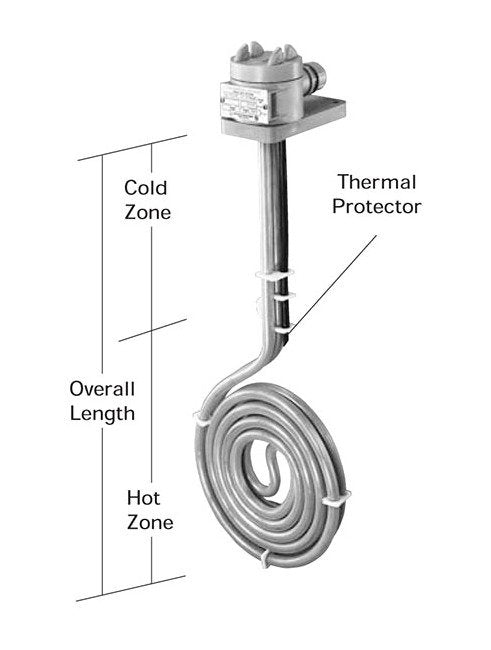

The HXF Series Low Profile Fluoropolymer (PTFE) Heaters are designed for efficient heating in industrial applications. With a power output of 3000W and a watt density of 10 W/in², these heaters operate at 480V, ensuring reliable performance. The fluoropolymer construction and stainless steel sheath with a welded ground wire enhance durability and resistance to corrosion. Recommended for solutions up to 250°F, these heaters come with various thermal protectors for added safety. Certified by CE, CSA, and UL, they meet stringent industry standards for quality and safety.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
9 " | 229 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXF09-23G
Specifications Hot Zone
10 " | 254 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
23 " | 584 mm
Specifications Phase
Single
Specifications Series
HXF Series
Specifications Shipping Weight
13.0 Pound
Specifications Std Cold Zone
13 " | 330 mm
Specifications Volts
480 V
Specifications Watts
3000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
13.0 lbs | 5.9 kg
