High Performance HXF Series Fluoropolymer Heaters
High Performance HXF Series Fluoropolymer Heaters
SKU:HEA-f9d805
Reliable HXF Series Fluoropolymer Heaters for industrial applications. 5000W, 240V power output with efficient heat transfer. Chemical-resistant fluoropolymer construction. CE, CSA, UL certified.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
High Performance HXF Series Fluoropolymer Heaters
$399.99
Quantity: 1
Claim Your Seller Account
High Performance HXF Series Fluoropolymer Heaters
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

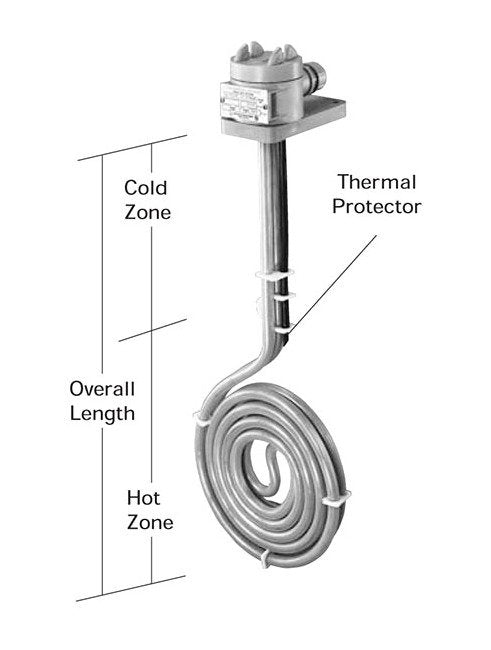

The HXF Series Low Profile Fluoropolymer (PTFE) Heaters are engineered for reliable heating in demanding industrial applications. With a power output of 5000W at 240V, these heaters feature a Watt Density of 10 W/in² providing efficient heat transfer. The hot zone of 13" and overall length of 35" ensure effective heating while the fluoropolymer construction guarantees chemical resistance. Certified by CE, CSA, and UL, these heaters are meticulously designed by Process Technology for durability and performance.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
12 " | 305 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXF12-35G
Specifications Hot Zone
13 " | 330 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
31 " | 787 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
35 " | 889 mm
Specifications Phase
Single
Specifications Series
HXF Series
Specifications Shipping Weight
18.0 Pound
Specifications Std Cold Zone
22 " | 559 mm
Specifications Volts
240 V
Specifications Watts
5000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
18.0 lbs | 8.2 kg
