High-Performance In-Line Check Valves
High-Performance In-Line Check Valves
SKU:ACC-70a6ae
Explore precision flow control with our High-Performance In-Line Check Valves, perfect for demanding applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High-Performance In-Line Check Valves
$89.99
Quantity: 1
Claim Your Seller Account
High-Performance In-Line Check Valves
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

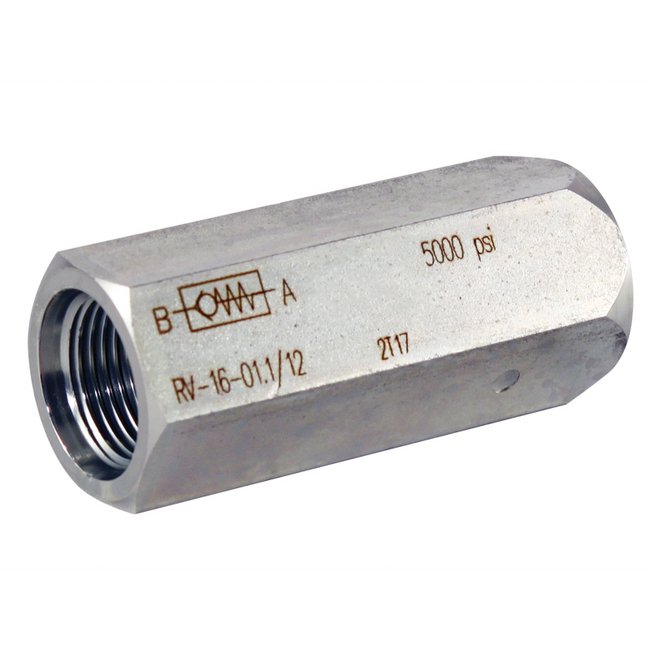

Experience superior flow control with our High-Performance In-Line Check Valves. Built with precision in mind, these valves feature a metal-to-metal seal design, hardened steel poppet, and NPTF ANSI/ASME compliant port configurations. With a cracking pressure of 65 psi and a maximum operating pressure of 5000 psi, these valves excel in demanding industrial applications. Not recommended for high-cycle use, they meet American National Standards Institute (ANSI) and American Society of Mechanical Engineers (ASME) certifications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

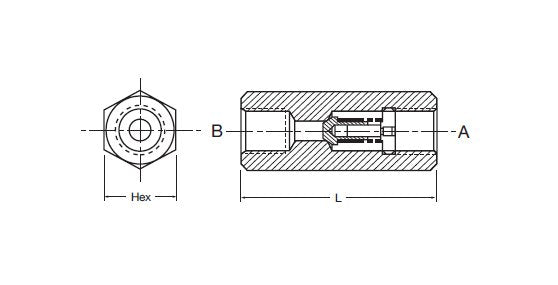

Dimensions Dimension L
2.87 in | 73 mm
Dimensions Hex Size
1 1/4 in | 30 mm
Features 0
9 Sizes, 1/8" - 2"NPT or SAE O-Ring connections and manifold mountingMetal to metal seal design for poppetHardened and ground steel poppet
Note 0
Not recommended for high-cycle applications!Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
4.5 bar | 65 psi
Specifications Division
ACCESSORIES
Specifications End Size
1/2 in.
Specifications End Type
NPT
Specifications Flow
150 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)/American Society of Mechanical Engineers (ASME)
Specifications Kinematic Viscosity At 86f30c
335 SUS
Specifications Maximum Temperature At Full Pressure
212 ºF
Specifications Minimum Temperature At Full Pressure
-4 ºF
Specifications Model Code Description
RV-12-01.X/5- 65
Specifications Mounting Type
Inline Mounting
Specifications Nominal Sizes
12
Specifications Operating Pressure Max
345 bar | 5000 psi
Specifications Port Configuration
NPTF - ANSI/ASME 1.20.3 Taper Pipe Thread
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1/2 in.
Specifications Second End Type
NPT
Specifications Type
Flow Control Valve
Specifications Weight
0.1 kg | 0.22 lb
