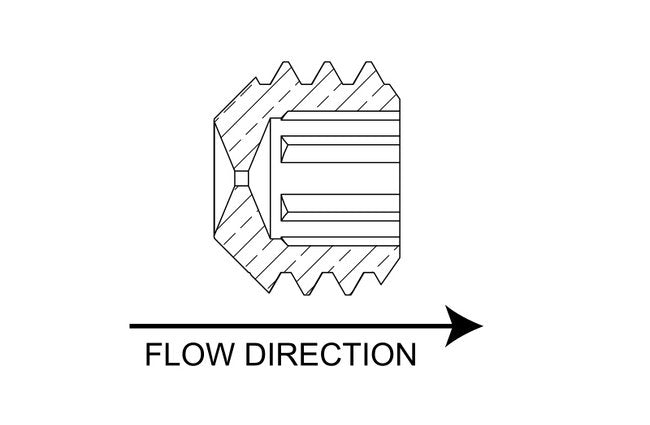

Upgrade your fluid systems with our premium Inch Threaded Inserts Set. Crafted from durable 316 SS material, our precision orifices ensure optimal flow control for liquids and gases. With orifice diameters ranging from 0.004" to 0.063", and air/water flow rates tailored for efficiency, these threaded inserts guarantee reliable performance. Ideal for fittings, manifolds, or custom parts, our threaded inserts meet stringent government procurement standards, offering exceptional quality and precision.
Product Specifications
Dimensions Orifice Diameter
0.04 in
Dimensions Thread Size
5/16-18
Dimensions Total Length
0.25 in
Dimensions Width Across Flats Hex
5/32 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 9.75 | 5 psig: 21.6 | 10 psig: 30.5 | 15 psig: 37.5 | 20 psig: 44.3 | 25 psig: 50.9 | 30 psig: 57.6 | 40 psig: 71.2 | 50 psig: 85.0 | 60 psig: 99.0 | 70 psig: 113 | 80 psig: 127 | 90 psig: 141 | 100 psig: 156
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 4.6 | 5 psig (34.5 kPag): 10.2 | 10 psig (69.0 kPag): 14.4 | 15 psig (103.4 kPag): 17.7 | 20 psig (137.9 kPag): 20.9 | 25 psig (172.4 kPag): 24 | 30 psig (206.9 kPag): 27.2 | 40 psig (275.8 kPag): 33.6 | 50 psig (344.8 kPag): 40.1 | 60 psig (413.7 kPag): 46.7 | 70 psig (482.7 kPag): 53.3 | 80 psig (551.6 kPag): 60 | 90 psig (620.6 kPag): 66.7 | 100 psig (689.5 kPag): 73.5
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 18.3 | 20 In. Hg.: 18.3 | 30 In. Hg.: 18.3
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 8.66 | 20 In. Hg. (508 Mm. Hg.): 8.66 | 30 In. Hg. (762 Mm. Hg.): 8.66
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 14.3 | 10 In. Hg.: 17.6
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 6.76 | 10 In. Hg. (254 Mm. Hg.): 8.31
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.036 | 2 psig: 0.051 | 3 psig: 0.062 | 4 psig: 0.072 | 5 psig: 0.080 | 6 psig: 0.088 | 7 psig: 0.095 | 8 psig: 0.102 | 9 psig: 0.108 | 10 psig: 0.114 | 15 psig: 0.139 | 20 psig: 0.161 | 30 psig: 0.197 | 40 psig: 0.228 | 50 psig: 0.255 | 60 psig: 0.279 | 70 psig: 0.301 | 80 psig: 0.322 | 90 psig: 0.342 | 100 psig: 0.360
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.136 | 2 psig (13.8 kPag): 0.193 | 3 psig (20.7 kPag): 0.236 | 4 psig (27.6 kPag): 0.273 | 5 psig (34.5 kPag): 0.305 | 6 psig (41.4 kPag): 0.334 | 7 psig (48.3 kPag): 0.361 | 8 psig (55.2 kPag): 0.385 | 9 psig (62.1 kPag): 0.409 | 10 psig (69 kPag): 0.431 | 15 psig (103.4 kPag): 0.528 | 20 psig (137.9 kPag): 0.609 | 30 psig (206.9 kPag): 0.746 | 40 psig (275.8 kPag): 0.862 | 50 psig (344.8 kPag): 0.964 | 60 psig (413.7 kPag): 1.056 | 70 psig (482.7 kPag): 1.140 | 80 psig (551.6 kPag): 1.219 | 90 psig (620.6 kPag): 1.293 | 100 psig (689.5 kPag): 1.363
Specifications Connection A
5/16"-18 UNC Threaded Insert
Specifications Material
316 SS
Specifications Nominal Orifice Size
40
Specifications Screened
None
