High Performance Laser Infrared Thermometer - 4.64 µm Spectral Range
High Performance Laser Infrared Thermometer - 4.64 µm Spectral Range
SKU:HIG-71d47a
High precision laser infrared thermometer for industrial applications, 200-1650 ºC range, 45.1 optical resolution, rapid 10 ms response time
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
High Performance Laser Infrared Thermometer - 4.64 µm Spectral Range
$799.99
Quantity: 1
Claim Your Seller Account
High Performance Laser Infrared Thermometer - 4.64 µm Spectral Range
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

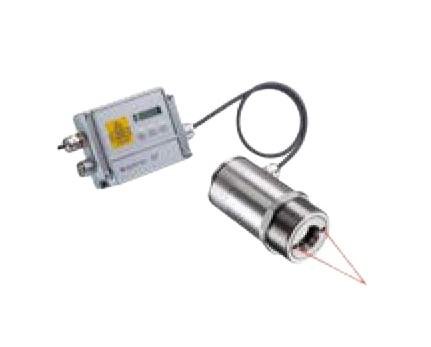

Experience precision and efficiency with the Optris Infrared Sensing High Performance Series Laser Infrared Thermometer. Featuring a two-piece sensor design with advanced temperature measurement capabilities ranging from 200 to 1650 ºC, this thermometer offers an unmatched optical resolution of 45.1 and a double laser sighting system for accurate readings. With a rapid response time of 10 ms and an accuracy of ±1%, it is ideal for demanding industrial applications. The thermometer comes with various accessories for versatile mounting options and enhanced functionality, making it a reliable choice for both daily use and critical measurements.
Product Specifications
Accessories Air Purges And Protective Housings
ACCTAPMH - Air purge collar CTratioACCTLAP - Air purge collar CxL/CxVACCTLW - Water cooled housing CxL/CxV, stainless steel, for Tamb up to 175 ºCACCTLCJA - Cooling Jacket AdvancedACCJAAPLS - Air purge laminar for Cooling Jacket AdvancedCooling Jacket Advanced with air purge laminarACCTLAP - Air purge collarACCTLW - Water cooled housingCooling sensing head + purging of optics
Accessories Combinations
ACHAMA - Mounting adapter + ACHAST300 + ACHAPA - Sighting tube + pipe adapter = ACCTLRM - Furnace wall mount for CSlaser/CTlaser
Accessories Mechanical Accessories
ACCTLFB - Mounting bracket, adjustable in one axisACCTLAB - Mounting bracket, adjustable in two axesACHAMA - Mounting Adapter: Mounting and pipe flange including screwsACCTRAIL - Rail mount adapter for CT electronics
Accessories Optical Accessories
ACHAST300 + ACHAPA - Sighting tube M48x1,5, 300 mm length + pipe adapter with M48x1,5 internal thread for Cooling JacketACCJAFPCTL + ACCJAPWCTLSW - Front part + Focusing unit with protective window for Cooling Jacket
Specifications Accuracy
±1%
Specifications Classificationspecial Features
Two-Piece Sensor with Separate Electronic Box Including Programming Keys and Display for Measuring.: MT:âThroughâFlames/F2:âCO2 FlameâGas/F6:âCOâFlameâGas
Specifications Detector
Thermopile
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Optical Resolution
45.1
Specifications Response Time At 90 Percent
10 ms
Specifications Sighting
Double Laser
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 28 I
0.06 in
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 70 M
1.6 mm
Specifications Smallest Spot Sf Optics At 1200 Millimeter Mm
27 mm
Specifications Smallest Spot Sf Optics At 4724 Inch In
1.1 in
Specifications Spectral Range
4.64 µm
Specifications Standard Cable Length Options
15 m | 3 m | 8 m | 26.2 ft | 49.2 ft | 9.8 ft
Specifications Temperature Ranges
200 to 1650 ºC | 392 to 3002 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
