High precision ST Series Linear Motor with 68.9N peak force, 12A peak current, and IP67 protection for reliable performance in demanding environments.
Regular price
$5,999.00
Regular price
Sale price
$5,999.00
Unit price
per
Initiate Order
High Performance Linear Motor for Precision Applications
$5,999.00
Quantity: 1
Claim Your Seller Account
High Performance Linear Motor for Precision Applications
$5,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

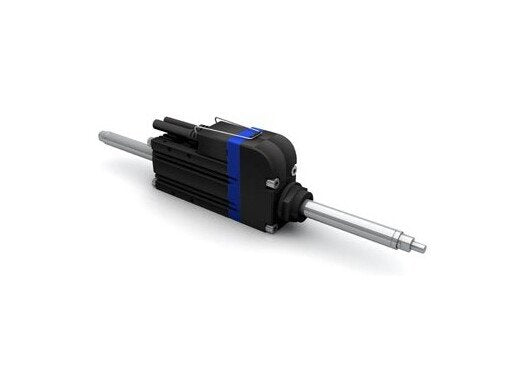

The ST Series Linear Motor is engineered for high precision and reliability, delivering a peak force of 68.9 N and peak current of 12 A at 25°C ambient temperature. Featuring an integrated sin/cos positioning sensor with ±6µm repeatability, this motor ensures accurate and consistent performance. With IP67 protection, it is suitable for demanding environments. Maintenance-free and low-noise operation make it ideal for various applications, while compliance with European Conformity (CE) standards ensures quality and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh dynamicFood gradeVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
19 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.87 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
15.18 N
Technical Specs Feedback Integrated
1 Vss
Technical Specs Force Constant Sine Commutation
8.12 rms
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed Sta
5.4 m/s
Technical Specs Maximum Speed Stb
6.0 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
75 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Force Constant Sine Commutation
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Maximum Speed Sta
Based on a moving thrust rod with triangular move over maximum stroke, no payload.
Technical Specs Note For Maximum Speed Stb
Based on a moving forcer with triangular move over maximum stroke, no payload.
Technical Specs Note For Peak Acceleration Sta
Based on a moving thrust rod with 14 mm stroke and no playload.
Technical Specs Note For Peak Acceleration Stb
Based on a moving forcer and no payload.
Technical Specs Peak Acceleration Sta
378 m/s²
Technical Specs Peak Acceleration Stb
109 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
12 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
68.9 N
Technical Specs Peak Power
91 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP67)
Technical Specs Repeatability
6 µm
