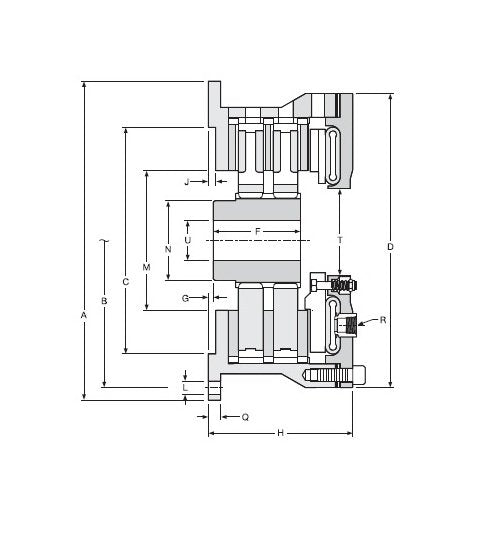

• High-Performance Low Inertia Air Tube Disc Brakes - Image 1
1 1
Clutch Engineering →

High-Performance Low Inertia Air Tube Disc Brakes

High-Performance Low Inertia Air Tube Disc Brakes

CLU-3624a8

Experience top-tier performance with our Low Inertia Air Tube Disc Brakes. Perfect for high-demand industrial applications.

$17,600.00
$17,600.00
Sale

Initiate Order

High-Performance Low Inertia Air Tube Disc Brakes

High-Performance Low Inertia Air Tube Disc Brakes

$17,600.00

Quantity: 1

Claim Your Seller Account

High-Performance Low Inertia Air Tube Disc Brakes

High-Performance Low Inertia Air Tube Disc Brakes

$17,600.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The High-Performance Low Inertia Air Tube Disc Brakes by Wichita Clutch offer a superior combination of disc clutch features and direct air engagement advantages. With dynamic torque ratings up to 4207500 lb·in, maximum bore size of 18.00 in, and a maximum RPM of 705, these brakes provide reliable and efficient performance. Designed for seamless air pressure application, these brakes are ideal for high-demand industrial environments. Consult the factory for specialized assembly numbers and drawings to ensure optimal installation.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note 0
Consult Factory for Special Assembly Number.For mounting, use socket head capscrews conforming to the ASTM-574-97a.(Consult factory for drawing before final layout.)
Specifications Actuation
Air Applied
Specifications Assembly Number
7-048-300-301-0
Specifications Dynamic Torque Rating 100 Psi7 Bar
4207500 lb·in | 453600 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
3366000 lb·in | 356400 Nm
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Air Pressure
130 psi | 9 bar
Specifications Maximum Bore Size
18.00 in | 455 mm
Specifications Maximum Rpm High Speed Airtube
705 rpm
Specifications Maximum Rpm Standard Airtube
475 rpm
Specifications Total Brake Weight
6540 lb | 2966 kg
Specifications Weight Hub Center Plate
2950 lb | 1338 kg
Specifications Wr2jmr2 Hub Center Plate
4925 lb·ft² | 208 kg·m²
