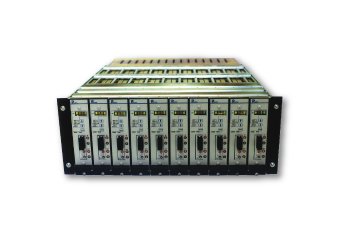

The High-Performance Modular Transducer Amplifier from the Model 9355 series is a cutting-edge solution for precise signal conditioning. Ideal for transducers and low-level signal sources, this fully programmable amplifier features voltage & current excitation, automatic balance, shunt calibration, and gains programmable from 1 to 10,000. With an onboard microprocessor for streamlined operation, IEEE-488 interface control, and Windows software compatibility, it ensures high-quality measurement data. Enjoy enhanced accuracy, flexibility, and ease of use with this advanced instrumentation amplifier.
Product Specifications
Amplifier Analog Output Amplifier
±10 Volts at 10 mA. Output impedance less than 1 Ohm.Tape Output: ±10 Volts at 10 mA. Output impedance less than 1 Ohm.Monitor (Analog): Terminals on the front panel for data output.Monitor (Digital): Output voltage displayed on control panel and returned by program command.Bandwidth: Jumper selected wideband or filtered response for each output.Protection: Protected against continuous short. No instability with capacitive loads to 0.22 µF.Output Isolation: Less than 100 nA RMS leakage to power or rack ground at 60 Hz line frequency.
Amplifier Bandwidth
100 kHz (-3dB) for all gains to 1,000. Bandwidth decreases proportional to gain above 1,000.
Amplifier Cm Voltage
±300 Volts DC or peak AC operating.
Amplifier Common Mode
120 dB DC to 60 Hz for gain 1,000 and above. At lower gains, CMR is 63 dB plus gain in dB. CMR decreases at a rate not exceeding 6 dB/octave from the specified value at 60 Hz. (350 Ohm source unbalance).
Amplifier Gain
1 to 10,000 with 0.05% resolution. Ten factory calibrated gains with ±0.1% accuracy: 1, 2, 5, 10, 20, 50, 100, 200, 500, and 1000. Total of 32 gain steps, 10 of which are preset at factory. Balance may be programmed by user.
Amplifier Gain Linearity
±0.01 %
Amplifier Gain Stability
±0.02% for six months. Temperature coefficient is ±0.004%/ºC maximum.
Amplifier Input Impedance
50 Megohms shunted by 200 pF (100K Ohms when AC Coupling is enabled - Option P only).
Amplifier Input Protection
±50 Volts differential, and ±350 Volts common mode.
Amplifier Noise 100 Khz
4 µV RTI plus 0.6 mV RTO, RMS (350 Ohm source or bridge).
Amplifier Noise 10 Hz
1 µV RTI plus 0.5 mV RTO, peak (350 Ohm source or bridge).
Amplifier Noise 10 Khz
2 µV RTI plus 0.3 mV RTO, RMS (350 Ohm source or bridge).
Amplifier Overload Indication
Latched status flag set and front panel LED illuminated when output exceeds ±10.5 Volts. LED is illuminated for 500 mS or duration of overload, whichever is longer. Status flag reset by program command.
Amplifier Overload Recovery
100 µS to within ±0.1% for a 10 times overload to ±10 Volts.
Amplifier Settling Time
75 µS to within ±0.1% final value.
Amplifier Slew Rate
6 V/µS
Amplifier Source Current
±1 nA, ±0.5 nA/ºC
Amplifier Zero Amplifier
Automatic zero to ±1 µV RTI or ±0.5 mV RTO whichever is greater at power up and change of gain or filter setting.
Amplifier Zero Stability
±5 µV RTI, ±0.5 mV RTO at constant temperature. Temperature coefficient is ±1 µV/ºC RTI and ±0.15 mV/ºC RTO. Zero shift for any gain or filter setting is less than ±2 mV RTO.
Calibration Voltage Substitution
Program instruction selects alternate calibration input to the differential amplifier for application of an external calibration signal.
Current Excitation Transducer Power Compliance
0.1 to 15 V
Current Excitation Transducer Power Current Excitation
Programmable 1 mA to 100 mA (limited to 25 Volts) with 50 µA resolution. 32 Excitation steps. Ten steps: 10, 20, 30....100 mA are factory calibrated to ±0.2% accuracy.
Current Excitation Transducer Power Current Excitation Noise
1 µA or 5 µV peak-to-peak (0.1 Hz to 20 kHz)
Current Excitation Transducer Power Current Excitation Stability
±0.01% or ±2 µA for 8 hours.
Current Excitation Transducer Power Current Monitor
Terminals on the front panel measure excitation. Voltage or current monitor is selected by a switch on the completion card. Also, Excitation level is displayed on the control panel and returned by program command. Analog representation of the excitation level is present on the data outputs during execution of the program command.
Current Excitation Transducer Power Current Regulation
±0.01% or ±0.1 µA for 10% line change.
Current Excitation Transducer Power Response Current Excitationt
50 µS to ±0.1% for 10% load change
Current Excitation Transducer Power Temperature Coefficient Curr
±0.005% or ±1 µA/ºC.
Mechanical Depth
17.75 in
Mechanical Height
7 in
Mechanical Width
1.63 in
Voltage Excitation Transducer Power Isolation
10,000 Megohms shunted by 1 pF to power and rack grounds.
Voltage Excitation Transducer Power Response Voltage Excitationt
5 µS to ±0.1% for no load to full load.
Voltage Excitation Transducer Power Temperature Coefficient Volt
±0.005% or ±100 µV/ºC
Voltage Excitation Transducer Power Voltage Excitation
Programmable from 0.5 to 15 Volts (limited to 25 Volts) with 10 mV resolution. 32 Excitation steps. 15 Steps: 1,2,3,4....,15 Volts are factory calibrated within ±0.2%. 100 mA limited to 140 mA.
Voltage Excitation Transducer Power Voltage Excitation Noise
100 µV plus 0.001% peak-to-peak (0.1 Hz to 20 kHz).
Voltage Excitation Transducer Power Voltage Excitation Regulatio
±0.01% or ±200 µV for 10% line change or no load to full load.
Voltage Excitation Transducer Power Voltage Excitation Sense
Switch on completion card selects local or remote sensing in voltage excitation mode. Full output is supplied at the transducer with up to 1 Volt line drop. Reverts to local sense mode if sense leads disconnected. Sense Current is 10 µA maximum.
Voltage Excitation Transducer Power Voltage Excitation Stability
±0.01% or ±500 µV for 8 hours.
Voltage Excitation Transducer Power Voltage Monitor
Terminals on the front panel measure excitation. Voltage or current monitor is selected by a switch on the completion card. Also, Excitation level is displayed on the control panel and returned by program command. Analog representation of the excitation level is present on the data outputs during execution of the program command.
