High-Performance OCXO Crystal Oscillator - 10 to 100 MHz
$149.99
Quantity: 1
Claim Your Seller Account
High-Performance OCXO Crystal Oscillator - 10 to 100 MHz
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

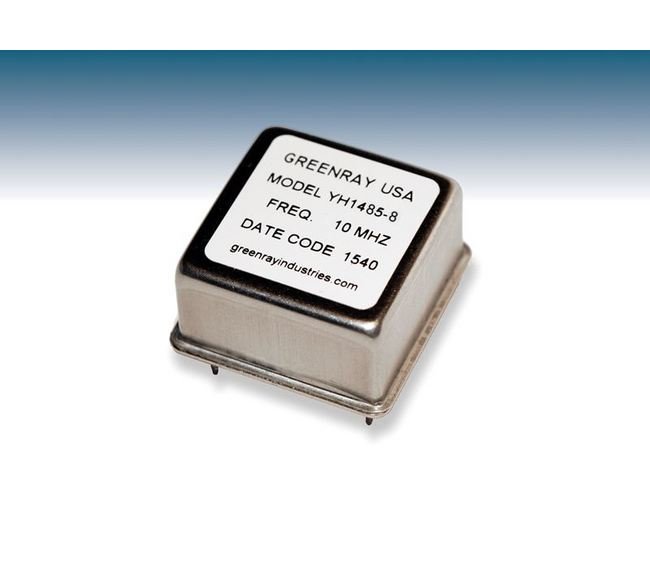

The OCXO 10 to 100 Megahertz Frequency Oven-Controlled Crystal Oscillator offers exceptional stability, low phase noise, and compact 1in. sq. package. With a frequency range of 10-100 MHz and precise frequency adjustments, this CMOS output oscillator ensures reliable performance. It complies with stringent environmental standards including MIL-STD-202 for vibration and shock resistance, making it ideal for government and institutional applications.
Product Specifications
Environmental And Mechanical Specifications Shock
Per MIL-STD-202, Method 213, Condition C
Environmental And Mechanical Specifications Vibration
Per MIL-STD-202, Method 204, Condition A
Phase Noise Performance 100 Hertz Hz Frequency Offset
-120 dBc/Hz at 100 MHz | -145 dBc/Hz at 10 MHz
Phase Noise Performance 100 Kilohertz Khz Frequency Offset
-160 dBc/Hz at 10 MHz | -160 dBc/Hz at 100 MHz
Phase Noise Performance 10 Hertz Hz Frequency Offset
-125 dBc/Hz at 10 MHz | -90 dBc/Hz at 100 MHz
Phase Noise Performance 10 Kilohertz Khz Frequency Offset
-155 dBc/Hz at 100 MHz | -160 dBc/Hz at 10 MHz
Phase Noise Performance 1 Kilohertz Khz Frequency Offset
-145 dBc/Hz at 100 MHz | -155 dBc/Hz at 10 MHz
Phase Noise Performance Note For Phase Noise
Typical
Specifications Aging For 1 Year At 100 Mhz
±0.5 ppm
Specifications Aging For 1 Year At 10 Mhz
±0.1 ppm
Specifications Frequency Versus Supply
±1 x 10-9 for a 5% Change
Specifications Harmonics
-20 dBc
Specifications Input Direct Current Dc Voltage
+12 V | +15 V | +3.3 V | +5 V
Specifications Input Power
Idle - 1.5 W Typical at +25 ºC | Warmup - <5 W for 5 minutes
Specifications Maximum Frequency
100 MHz
Specifications Minimum Frequency
10 MHz
Specifications Note For Frequency Adjustment
0 to +3.3 V or +5.0 V EFC
Specifications Note For Harmonics
Sinewave Version
Specifications Note For Input Voltage
Specs are degraded for the +3.3 V supply. Available temp to -20 to +70 ºC
Specifications Note For Output
+4 dBm for a 3.3 Vsupply
Specifications Ordering Example
YH1460-N18-5-STD-10.0 MHz(Model-Stability-Input V-GSense-Frequency)
Specifications Output
CMOS Squarewave | Squarewave
Specifications Pin Configuration

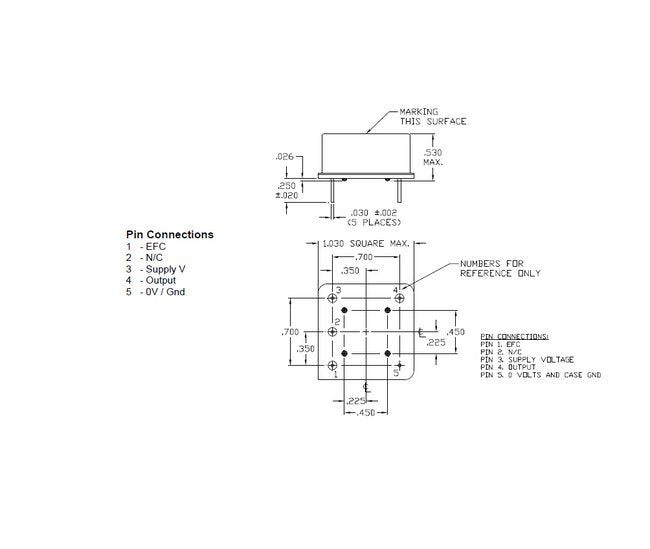

1 - EFC | 2 - N/C | 3 - Supply Voltage | 4 - Output | 5 - 0 V/Gnd
Specifications Positive Slope Frequency Adjust For 100 M
±2.0 ppm
Specifications Positive Slope Frequency Adjust For 10 Mh
±1.0 ppm
Specifications Standard Sd Option Acceleration Sensitivity
â¤2 x 10-9/g in the worst axis (STD) | â¤5 x 10-10/g available with 0.6" high package (HS)
Temperature Stability Model B18
10 MHz Tolerance: ±1 x 10-8 | Temperature Range: 0 to +50 ºC
Temperature Stability Model B58
100 MHz Tolerance: ±5 x 10-8 | Temperature Range: 0 to +50 ºC
Temperature Stability Model G78
100 MHz Tolerance: ±7 x 10-8 | Temperature Range: -10 to +60 ºC
Temperature Stability Model N17
100 MHz Tolerance: ±1 x 10-7 | Temperature Range: -20 to +70 ºC
Temperature Stability Model T37
100 MHz Tolerance: ±3 x 10-7 | Temperature Range: -40 to +85 ºC
Temperature Stability Option G18
10 MHz Tolerance: ±1 x 10-8 | Temperature Range: -10 to +60 ºC
Temperature Stability Option N18
10 MHz Tolerance: ±1 x 10-8 | Temperature Range: -20 to +70 ºC
Temperature Stability Option T28
10 MHz Tolerance: ±2 x 10-8 | Temperature Range: -40 to +85 ºC
