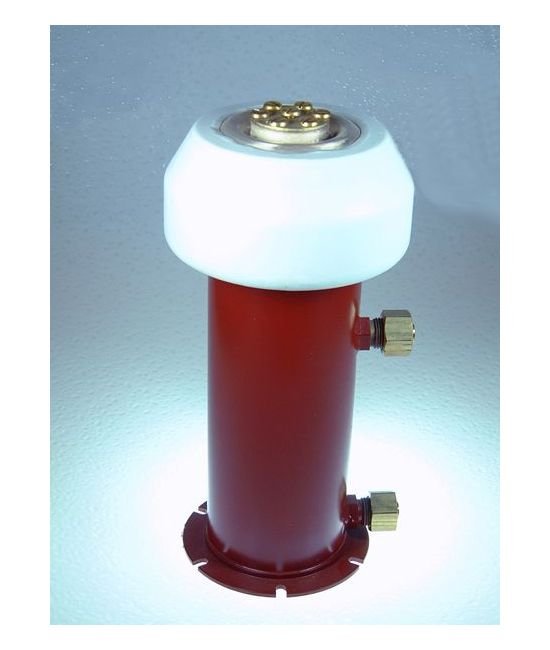

High-Performance PWC Water-Cooled Ceramic Capacitors - 400pF, 14kV
High-Performance PWC Water-Cooled Ceramic Capacitors - 400pF, 14kV
SKU:CER-1e1804
High-power PWC Water-Cooled Ceramic Capacitors for industrial RF applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
High-Performance PWC Water-Cooled Ceramic Capacitors - 400pF, 14kV
$299.99
Quantity: 1
Claim Your Seller Account
High-Performance PWC Water-Cooled Ceramic Capacitors - 400pF, 14kV
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

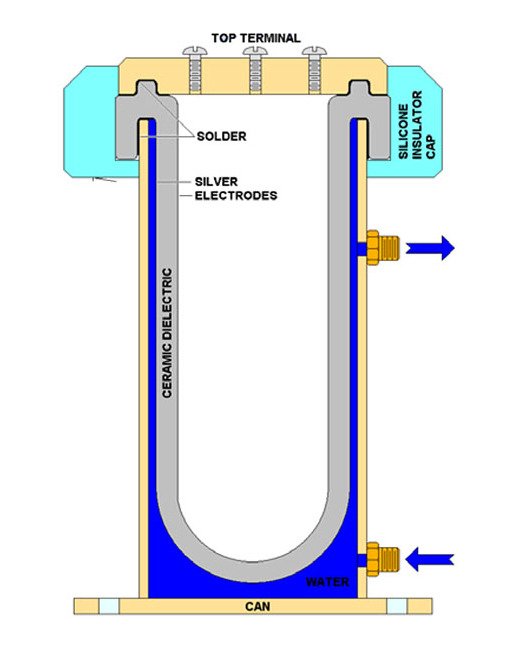

The PWC Water-Cooled Ceramic Capacitors are specially designed for high-power applications, offering a current capacity of 300 Amperes and reactive power ratings up to 4000 kVA. With a low dissipation factor Class I dielectric and robust structural strength, these capacitors are optimized for tank circuits in high-power RF equipment. The innovative water-cooling system enhances thermodynamic efficiency, enabling operation at extreme power levels and high frequencies. Ideal for induction heating, dielectric heating, and high-frequency welding applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Cooling Requirements Closed System Derating
Increase Cooling Flow by 20% when antifreeze is used
Cooling Requirements Cooling Water Pressure
Not to exceed 60 PSIA (132 feet of H2O)
Cooling Requirements Inlet Water Temperature
30ºC or less recommended; not to exceed 50ºC when capacitor cooling is chained
Cooling Requirements Maximum Capacitor Temperature
The maximum allowable temperature of the Inner Terminal is 100ºC.
Cooling Requirements Maximum Temperature Rise
The maximum allowable temperature rise is 10ºC with an inlet temperature of 25ºC.
Specifications Cap
400 pF
Specifications Capacitance Tolerance
±20% (Standard) | ±10% (Optional)
Specifications Dielectric Strength
Will withstand an AC potential of 1.4 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Fh
5.96 MHz
Specifications Fl
6.09 MHz
Specifications Imax Rms
150 A
Specifications Maximum Dissipation Factor
0.05%
Specifications Minimum Insulation Resistance
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
1500 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC), Maximum Frequency, Maximum Reactive Power, Maximum Current and Date Code
Specifications Storage Temperature Range
-55 to 125 ºC
Specifications Vmax Dc
14 kV
