High Performance Series 0.525 Micrometer Spectral Range Laser Infrared Thermometer
High Performance Series 0.525 Micrometer Spectral Range Laser Infrared Thermometer
SKU:HIG-a8f24b
Accurate High Performance Series Laser Infrared Thermometer for precise high-temperature measurements. Double laser sighting with 1 ms response time.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
High Performance Series 0.525 Micrometer Spectral Range Laser Infrared Thermometer
$1,299.99
Quantity: 1
Claim Your Seller Account
High Performance Series 0.525 Micrometer Spectral Range Laser Infrared Thermometer
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

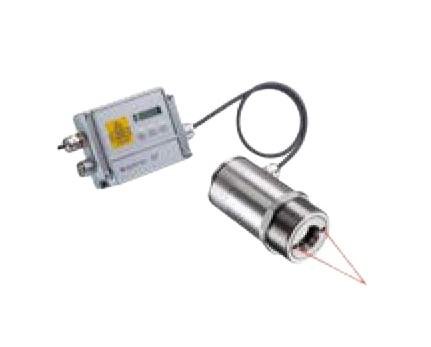

The High Performance Series Laser Infrared Thermometer by Optris Infrared Sensing sets the industry standard with its advanced features. With a Spectral Range of 0.525 µm and an Optical Resolution of 150:1, it offers precise temperature measurements ranging from 1000 to 2000 ºC. The double laser sighting, high temperature capabilities, and rapid 1 ms response time make it ideal for institutional high-temperature measurements. This thermometer comes with various accessories for enhanced functionality and mounting options.
Product Specifications
Accessories Air Purges And Protective Housings
ACCTAPMH - Air purge collar CTratioACCTLAP - Air purge collar CxL/CxVACCTLW - Water cooled housing CxL/CxV, stainless steel, for Tamb up to 175 ºCACCTLCJA - Cooling Jacket AdvancedACCJAAPLS - Air purge laminar for Cooling Jacket AdvancedCooling Jacket Advanced with air purge laminarACCTLAP - Air purge collarACCTLW - Water cooled housingCooling sensing head + purging of optics
Accessories Combinations
ACHAMA - Mounting adapter + ACHAST300 + ACHAPA - Sighting tube + pipe adapter = ACCTLRM - Furnace wall mount for CSlaser/CTlaser
Accessories Mechanical Accessories
ACCTLFB - Mounting bracket, adjustable in one axisACCTLAB - Mounting bracket, adjustable in two axesACHAMA - Mounting Adapter: Mounting and pipe flange including screwsACCTRAIL - Rail mount adapter for CT electronics
Accessories Optical Accessories
ACHAST300 + ACHAPA - Sighting tube M48x1,5, 300 mm length + pipe adapter with M48x1,5 internal thread for Cooling JacketACCJAFPCTL + ACCJAPWCTLSW - Front part + Focusing unit with protective window for Cooling Jacket
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Classificationspecial Features
Two-Piece Sensor with Separate Electronic Box for High Temperature Measurement of Liquid Metal, Including Programming Keys and Display
Specifications Detector
Si
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Optical Resolution
150:1
Specifications Response Time At 90 Percent
1 ms
Specifications Sighting
Double Laser
Specifications Smallest Spot Sf Optics At 1100 Millimeter Mm
7.3 mm
Specifications Smallest Spot Sf Optics At 4331 Inch In
0.29 in
Specifications Spectral Range
0.525 µm
Specifications Standard Cable Length Options
15 m | 3 m | 8 m | 26.2 ft | 49.2 ft | 9.8 ft
Specifications Temperature Ranges
1000 to 2000 ºC | 1832 to 3632 ºF
Specifications Temperature Resolution
0.2 K
Specifications Thread Sensing Head
M48 x 1.5
