The Series 52 Full Lug Valves ANSI are engineered for precision and durability, meeting ISO 5752 S-20 face to face standards. Available in sizes ranging from 2" to 40", with body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. The valve disc comes in Coated, Ductile Iron, Stainless Steel, or Aluminum Bronze, ensuring versatile performance. Stem materials like K Monel and Stainless Steel guarantee reliable operation. Seats and packings are available in NBR, EPDM, Viton, Neoprene, and Silicone, providing optimal sealing solutions for various applications.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

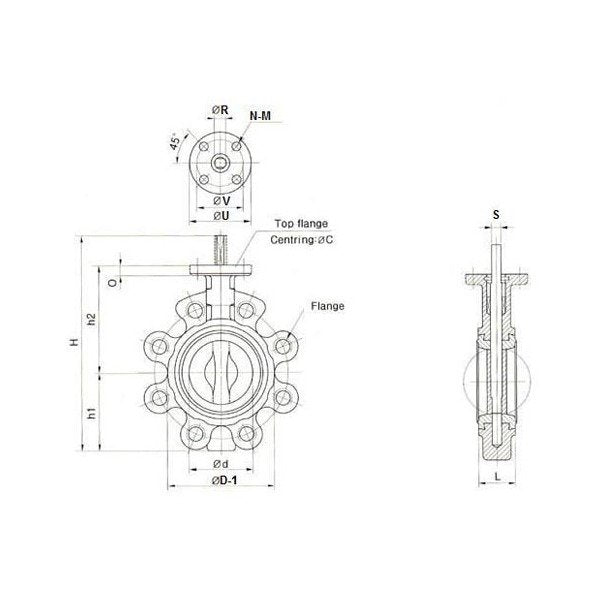

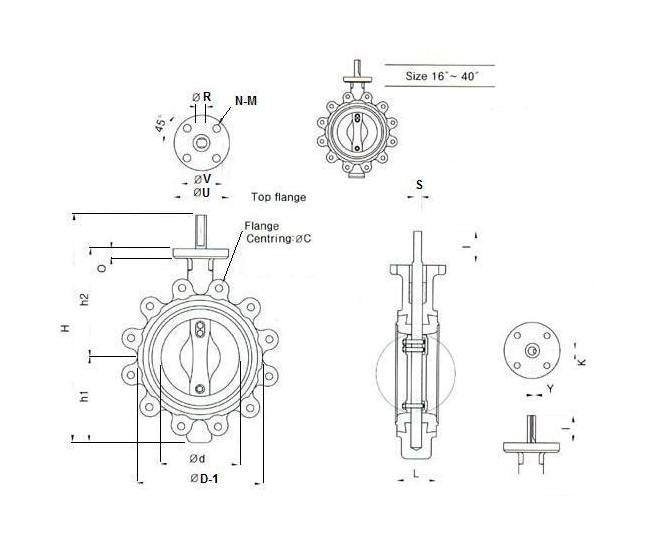

Specifications C
863.6 mm
Specifications D
690 mm
Specifications D 1
800 mm
Specifications H
1355 mm
Specifications H1
580 mm
Specifications H2
574 mm
Specifications Hole Diameter
1 1/4 in
Specifications L
165 mm
Specifications Number Of Holes
28
Specifications O
35 mm
Specifications Size
700 - 28"
Specifications Standard
ANSI
Specifications Stem I
120 mm
Specifications Stem K
10 mm
Specifications Stem R
70 mm
Specifications Stem Y
5 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F25
Specifications Top Flange To Iso 5211 M Diameter
18.5 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
6
Specifications Top Flange To Iso 5211 U
230 mm
Specifications Top Flange To Iso 5211 V
190 mm
Specifications Weight
490 kg
