The High Performance Single Flange CB Elements in size 32CB525 offer exceptional torque rating of 137000 lb·in | 15500 Nm, ideal for heavy-duty industrial applications. With a maximum speed of 900 rpm and a friction area of 483 in² | 3115 cm², these elements ensure reliable and efficient performance. Weighing 157 lb | 71 kg, they are designed for durability and longevity. Suitable for diverse clutch and brake systems, these elements meet stringent government procurement standards, including Federal/DoD requirements and FAR compliance factors.
Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.10.00 degrees for elements with one air inlet, 5.00 degrees for elements with two or four air inlets.
Specifications Air Inlet Thread
1/2-14
Specifications Air Tube Cavity
310 in³ | 5.08 dm³
Specifications Bolt Hole Size L
0.625 in | 16 mm
Specifications Centrifugal Loss Constant Cs
2.97 E-06 bar/rpm2 | 43 E-06 psi/rpm2

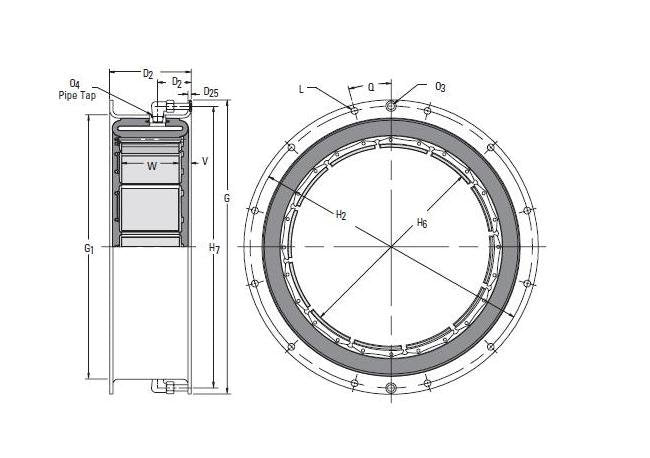

Specifications Dimension D2
6.94 in | 176 mm
Specifications Dimension D24
2.50 in | 64 mm
Specifications Dimension D25
0.25 in | 6 mm
Specifications Dimension G
40.000 in | 1016 mm
Specifications Dimension G1
37.00 in | 940 mm
Specifications Dimension H2
38.750 in | 984.3 mm
Specifications Dimension H6
32.19 in | 818 mm
Specifications Dimension H7
38.50 in | 978 mm
Specifications Dimension O3
0.50 in | 13 mm
Specifications Dimension V
0.84 in | 21 mm
Specifications Friction Area
483 in² | 3115 cm²
Specifications Friction Shoe Width W
5.25 in | 133 mm
Specifications Inertia
359 lb·ft² | 15.08 kg·m²
Specifications Maximum Speed
900 rpm
Specifications Minimum Drum Diameter
31.81 in | 808 mm
Specifications New Friction Lining Thickness
0.33 in | 8 mm
Specifications Number Of Friction Shoes
19
Specifications Number Of Mounting Holes
18
Specifications Size
32CB525
Specifications Torque Rating 75 Psi55 Bar
137000 lb·in | 15500 Nm
Specifications Weight
157 lb | 71 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
