Upgrade your industrial machinery with our High Performance Single Flange CB Elements. This CB-402 element boasts a Torque Rating of 121,000 lb·in, Maximum Speed of 950 rpm, and a durable Friction Area of 458 in². With precise specifications for Size 30CB525 and Inertia of 303 lb·ft², this component ensures reliable operation under demanding conditions. Designed with 18 Friction Shoes and compliant with federal procurement standards, this element offers unmatched durability and efficiency for your clutch and brake systems.

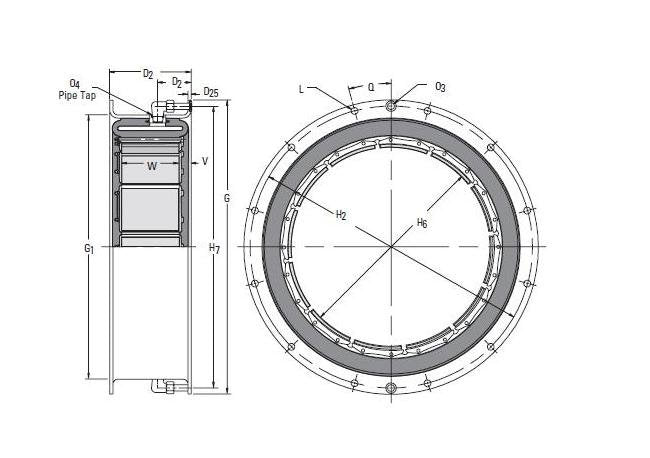

Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
1/2-14
Specifications Air Tube Cavity
290 in³ | 4.76 dm³
Specifications Angle Q
11.250 º
Specifications Bolt Hole Size L
0.625 in | 16 mm
Specifications Centrifugal Loss Constant Cs
2.76 E-06 bar/rpm2 | 40 E-06 psi/rpm2
Specifications Dimension D2
6.94 in | 176 mm
Specifications Dimension D24
2.50 in | 64 mm
Specifications Dimension D25
0.25 in | 6 mm
Specifications Dimension G
38.000 in | 965.2 mm
Specifications Dimension G1
35.00 in | 889 mm
Specifications Dimension H2
36.750 in | 933.5 mm
Specifications Dimension H6
30.19 in | 767 mm
Specifications Dimension H7
36.50 in | 927 mm
Specifications Dimension O3
0.50 in | 13 mm
Specifications Dimension V
0.84 in | 21 mm
Specifications Friction Area
458 in² | 2954 cm²
Specifications Friction Shoe Width W
5.25 in | 133 mm
Specifications Inertia
303 lb·ft² | 12.73 kg·m²
Specifications Maximum Speed
950 rpm
Specifications Minimum Drum Diameter
29.81 in | 757 mm
Specifications New Friction Lining Thickness
0.33 in | 8 mm
Specifications Number Of Friction Shoes
18
Specifications Number Of Mounting Holes
16
Specifications Size
30CB525
Specifications Torque Rating 75 Psi55 Bar
121000 lb·in | 13700 Nm
Specifications Weight
148 lb | 67 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
