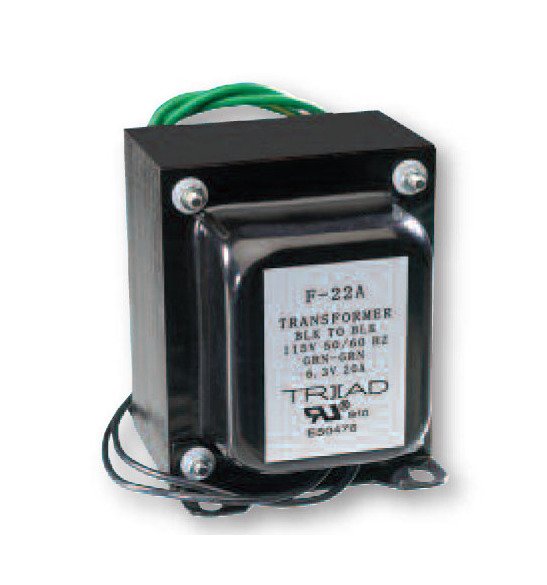

High-Performance Single Secondary Chassis Mount Power Transformers
High-Performance Single Secondary Chassis Mount Power Transformers
SKU:POW-0116bc
Enhance power efficiency with our Single Secondary Chassis Mount Power Transformers. Reliable, versatile, and compliant with industry standards.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
High-Performance Single Secondary Chassis Mount Power Transformers
$99.99
Quantity: 1
Claim Your Seller Account
High-Performance Single Secondary Chassis Mount Power Transformers
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your power supply system with our high-performance Single Secondary Chassis Mount Power Transformers. Designed for direct use or integration in transformer, rectifier, or filter circuits, these transformers meet rigorous industry standards. Featuring a Center Tap transformer contact type and secondary voltage of 6.3V with 20.000A secondary current, they ensure reliable power distribution. With primary voltage options of 115V and primary frequency support for 50Hz and 60Hz, these transformers offer versatility for various applications. The compact design, standard size, and durable construction make them ideal for both consumer and institutional buyers.

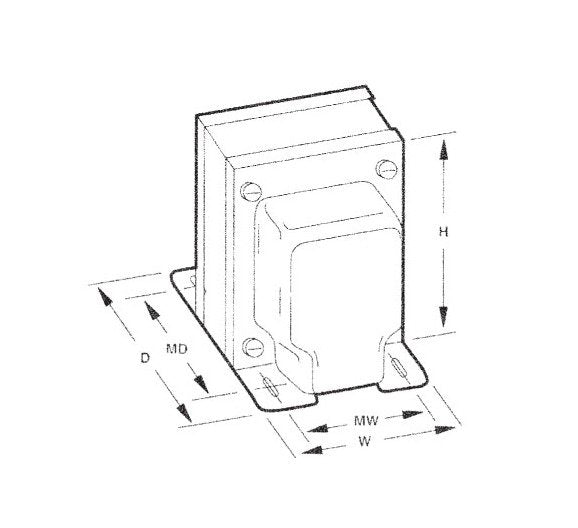

Product Specifications
Specifications Case Type
A
Specifications Connections
2-Leads
Specifications Depth D
4 1/8 in
Specifications Height H
3 7/8 in
Specifications Mounting Depth
3 in
Specifications Mounting Hole Size
3/8 x 3/16 in
Specifications Mounting Width
2 1/2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current
20.000 A
Specifications Secondary Rms Test Voltage
2,000 V
Specifications Secondary Voltage
6.3 V
Specifications Transformer Contact Type
Center Tap
Specifications Weight
7.00 lb
Specifications Width W
3 9/32 in
