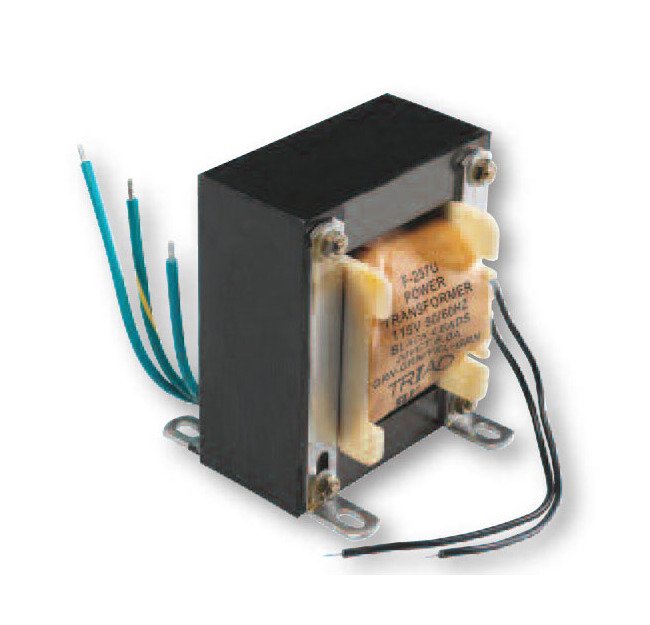

High-Performance Single Secondary Power Transformers
High-Performance Single Secondary Power Transformers
SKU:POW-3ffea0
Versatile Single Secondary Power Transformers for precise power supply needs. Secondary voltages of 10.0V, 11.0V, and 12.0V. Reliable and efficient for various circuits.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
High-Performance Single Secondary Power Transformers
$79.99
Quantity: 1
Claim Your Seller Account
High-Performance Single Secondary Power Transformers
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Designed for versatility and reliability, our Single Secondary Chassis Mount Power Transformers are ideal for a wide range of applications, including transformer, rectifier, and filter circuits. With secondary voltages of 10.0V, 11.0V, and 12.0V, a primary voltage of 115V, and a secondary current of 11.000A, these transformers offer exceptional performance. Featuring a Center Tap transformer contact type and meeting standard size and weight configurations, our transformers provide efficient power conversion. The tapped primary allows for the production of lower voltages, ensuring flexibility and precision in your power supply setups.
Product Specifications
Note Note
Tapped primary to produce lower voltages
Specifications Case Type
U
Specifications Connections
Leads

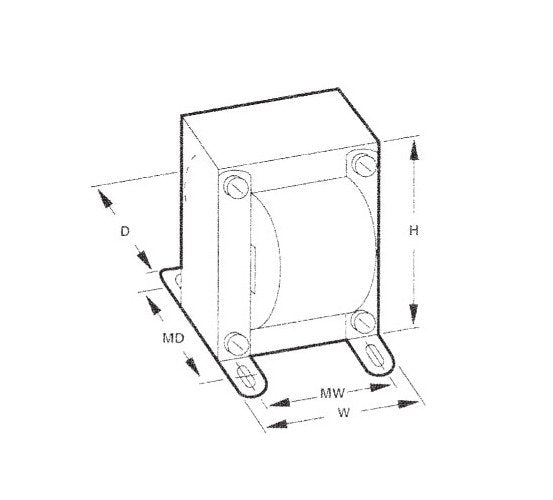

Specifications Depth D
3 3/8 in
Specifications Height H
4 3/8 in
Specifications Mounting Depth
2 9/16 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Width
2 3/4 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current
11.000 A
Specifications Secondary Rms Test Voltage
3,000 V
Specifications Secondary Voltage
10.0 V | 11.0 V | 12.0 V
Specifications Transformer Contact Type
Center Tap
Specifications Weight
6.50 lb
Specifications Width W
3 1/2 in
