High-Performance Small Bipolar Electromagnet
High-Performance Small Bipolar Electromagnet
SKU:SMA-9efd78
Enhance your magnetic capabilities with our Small Bipolar Electromagnet. Ideal for various part shapes, this electromagnet offers superior performance through air gaps.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
High-Performance Small Bipolar Electromagnet
$279.99
Quantity: 1
Claim Your Seller Account
High-Performance Small Bipolar Electromagnet
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

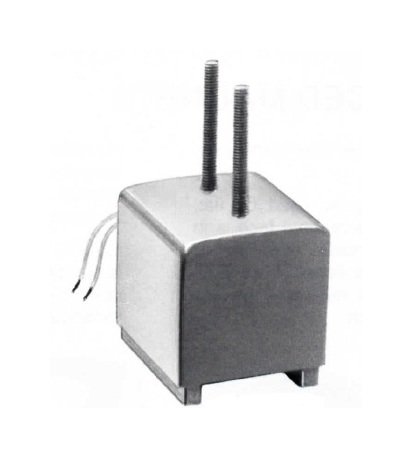

Experience superior magnetic field 'reach-out' with our Small Bipolar Electromagnet. Designed for optimal performance through air gaps and non-magnetic materials, this electromagnet excels with round, uneven, and odd-shaped parts. Auxiliary pole shoes can enhance contact for improved efficiency. With optional DC voltage ratings of 24V and 110V, and a standard 12V DC voltage, this electromagnet delivers 35W of power, a pull capacity of 1100 lb, and precise dimensions for reliable operation.
Product Specifications

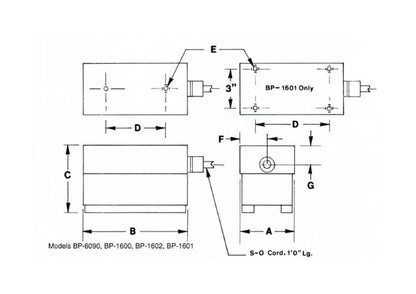

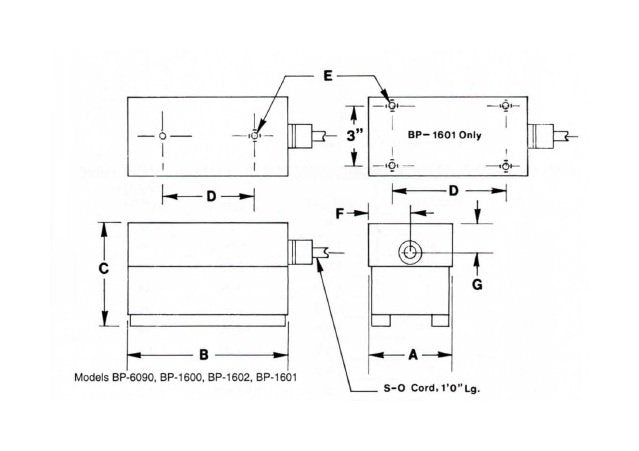

Specifications Height C
4 3/4 in
Specifications Length B
7 5/8 in
Specifications Location Of Leads F
2 1/16 in
Specifications Location Of Leads G
1 1/8 in
Specifications Mounting D
5 in
Specifications Net Weight
25 lb
Specifications Optional Dc Voltage Ratings
24 V | 110 V
Specifications Power
35 W
Specifications Pull Capacity
1100 lb
Specifications Standard Dc Voltage
12 V
Specifications Thread And Length E
1/2-13 x 1 in deep
Specifications Width A
4 1/8 in
