High-Performance SP Series Serpentine Coils
High-Performance SP Series Serpentine Coils
SKU:HEA-57bc57
Advanced SP Series Serpentine Coils for efficient heating and cooling. Superior durability and chemical resistance in a compact design.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
High-Performance SP Series Serpentine Coils
$699.99
Quantity: 1
Claim Your Seller Account
High-Performance SP Series Serpentine Coils
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

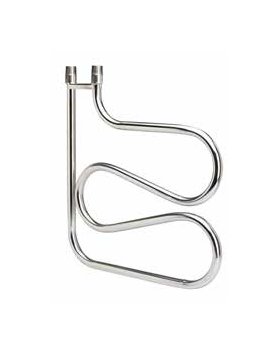

The High-Performance SP Series Serpentine Coils are engineered for exceptional heating and cooling efficiency. Crafted from 316 Stainless Steel, these coils feature a unique serpentine design that maximizes heat exchange surface area. With a range of tubing sizes and material options like titanium, they offer superior chemical resistance suitable for various solutions. The rugged construction ensures durability, while the leak-free operation and low-profile design make them ideal for space-limited installations. Explore mounting hangers, custom sizes, and advanced coating options for tailored solutions.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: Wide variety of materials available for use in heating or cooling applications for alkaline solutions, acid solutions, and rinse tanks. Check solution guide or consult with your chemical supplier for proper sheath material. RUGGED CONSTRUCTION: Heavy wall, 18-gauge metal tubing available in steel, 316 stainless steel and titanium. OUTSTANDING PERFORMANCE: Low profile design for installation in tanks with limited space. Offers low cost for heating surface area. Every inch of coil surface is active exchange area. LEAK-FREE OPERATION: Single point connections reduce thepotential for leaks and simplifies installation. SIZES: 2.6 square ft. to 10 square ft. of exchange area standard for 4-pass and 6-pass designs. OPTIONS AVAILABLE (consult factory): Mounting hangers. Special sizes in 2, 8 or 10-pass configurations. Heavier gauge tubing. Other riser lengths and configurations. Zirconium, Hastelloy C and other alloys available. Fluoropolymer coatings for protection at solution/atmospheric interface. Non-conductive isolator couplings. L-shaped configurations for bottom heat applications. High pressure ratings available (consult factory).
Specifications Available Tubing
1/2 " | 5/8 " | 3/4 " | 1 "

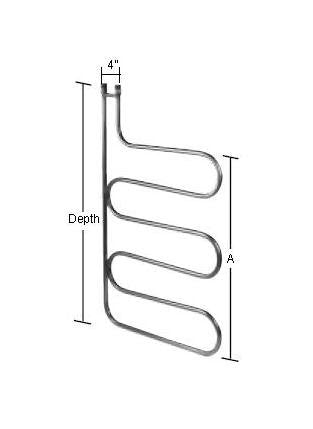

Specifications Depth
36 " | 914 mm
Specifications Exchange Area
5.7 ft²
Specifications Inlet Connection
A = 3/4" MNPT | B = 1" MNPT - (Standard) | C = 1-1/4" MNPT | D = 1-1/2" MNPT | F = 1/2" FNPT | G = 3/4" FNPT | H = 1" FNPT | J = 1/2" FNPT
Specifications Length
60 " | 1524 mm
Specifications Manufacturer
Process Technology
Specifications Material
316 Stainless Steel
Specifications Miscellaneous
-LP = low profile
Specifications Number Of Passes
4
Specifications Outlet Connection
A = 3/4" MNPT | B = 1" MNPT - (Standard) | C = 1-1/4" MNPT | D = 1-1/2" MNPT | F = 1/2" FNPT | G = 3/4" FNPT | H = 1" FNPT | J = 1/2" FNPT

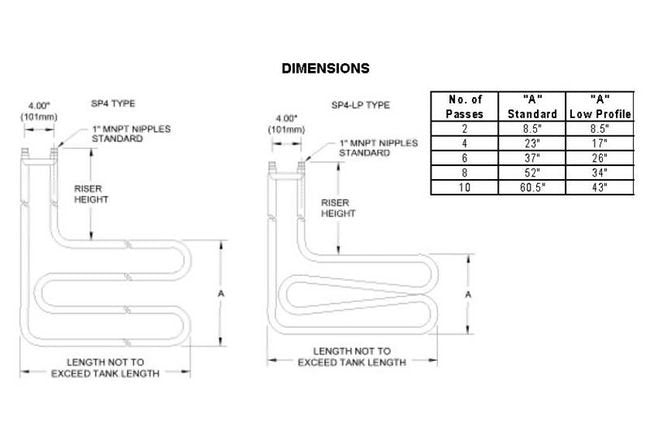

Specifications Riser Height
-BR = bottom style coil, specify riser height | -R = specify custom riser height
Specifications Shipping Weight
16.0 Pound
Specifications Weight
16.0 lbs | 7.3 kg
