High-performance Thermally Conductive Silicone Adhesive Sealant
High-performance Thermally Conductive Silicone Adhesive Sealant
SKU:THE-b20196
High-performance Thermally Conductive Silicone Sealant - Fast-cure, excellent thermal conductivity, and tough protection for high-demand applications.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
High-performance Thermally Conductive Silicone Adhesive Sealant
$25.99
Quantity: 1
Claim Your Seller Account
High-performance Thermally Conductive Silicone Adhesive Sealant
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

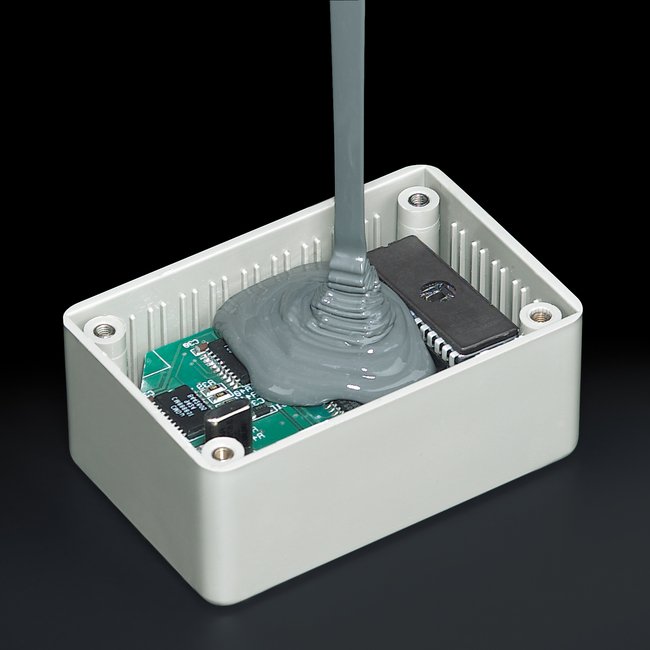

Experience superior thermal conductivity and fast, heat-cured bonding with our High-performance Thermally Conductive Silicone Adhesive Sealant. This one-part, flowable silicone sealant boasts an A Part viscosity of 43000 MPa, ensuring robust adhesion and excellent thermal management capabilities. With a wide working temperature range (-50ºC to +260ºC), non-corrosive properties, and tough protective rubber features, this sealant is ideal for demanding applications requiring reliability and efficiency. Perfect for industrial, automotive, or electronic projects that demand precision and durability.
Product Specifications
Features
Fast cure with heatExcellent thermal conductivityNon-corrosiveTough protective rubber
Specifications Appearance
Viscous Liquid
Specifications A Part Viscosity
43000 MPa
Specifications Coefficient Of Thermal Expansion Cte Linear
187 ppm/ºC
Specifications Coefficient Of Thermal Expansion Cte Volumetric
562 ppm/ºC
Specifications Color
Gray
Specifications Cure Type
Addition
Specifications Dielectric Constant At 1 Kilohertz Khz Frequency
6
Specifications Dielectric Strength
22.5 kV/mm
Specifications Durometer Shore A
67 duro
Specifications Elongation
70 %
Specifications Food And Drug Administration Fda
No
Specifications Linear Shrinkage
2 %
Specifications Maximum Cure Time At 100 Degree Celsius C Tempera
30 minutes
Specifications Maximum Storage Temperature
15 ºC
Specifications Maximum Working Temperature
+260 ºC
Specifications Minimum Storage Temperature
-5 ºC
Specifications Minimum Working Temperature
-50 ºC
Specifications Non Corrosive
Yes
Specifications Pack Type
1 Part
Specifications Rheology
Flowable
Specifications Room Temperature Vulcanizing Rtv Or Heat Cure
Heat Cured
Specifications Self Bonding
Yes
Specifications Sg
2.06
Specifications Shelf Life
6 months
Specifications Surface Resistivity
1.3E+15 Ω
Specifications Tensile Strength
3.1 MPa
Specifications Test Conditions
After 1 hour at 150ºC
Specifications Thermal Conductivity
1.38 W/m·K
Specifications Underwriters Laboratories Ul 94v 0
No
Specifications Volume Resistivity
7.7E+15 Ω·cm
