High-Performance Universal Load Cells
High-Performance Universal Load Cells
SKU:LOA-226812
Measure forces with precision using our Universal Load Cells designed for reliability and accuracy in tension and compression. Ideal for institutional buyers.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
High-Performance Universal Load Cells
$2,399.99
Quantity: 1
Claim Your Seller Account
High-Performance Universal Load Cells
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

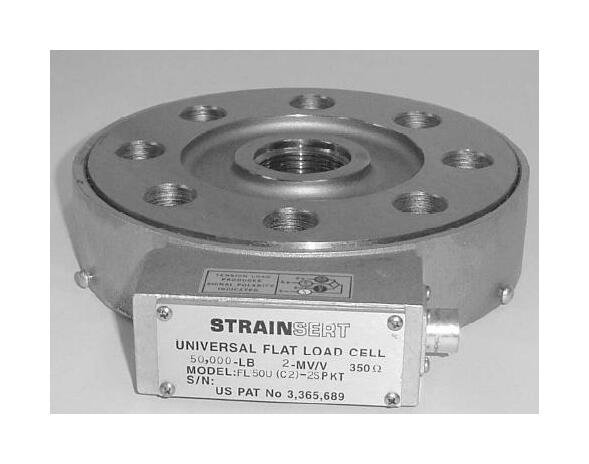

The High-Performance Universal Load Cells are engineered to precisely measure forces in both tension and compression, offering a measurement range from ±250 to ±2.0 million lbs. These load cells are designed with low profile, rugged construction that is compact and lightweight. Featuring high sensitivity strain gages, sealed for pressure compensation, they offer low deflection and high frequency dynamic load sensing. With a range of configurations such as dual and single bridge options, these load cells provide accurate readings with non-linearity options of ±0.25% F.S. for general purposes and ±0.10% F.S. for precision applications. Ideal for institutional and government buyers, these load cells meet stringent calibration standards and ensure reliable performance in various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensional Drawing Dimensional Drawing
Universal Flat Load Cells
Electrical Specifications Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)
Electrical Specifications Excitation
Red
Electrical Specifications Function
Wire Code
Electrical Specifications Mating Plug
PT06A-10-6S (SR)
Electrical Specifications Receptacle
PT02H-10-6P
Electrical Specifications Signal
Green
Features 0
Low Profile, Rugged, Compact & Lightweight Low Deflection High Frequency Dynamic Load Sensing Pressure Compensating Sealed Strain Gages Counterbored Mounting Holes Low Sensitivity to Extraneous Loads High Static Overload
General Information 0
Load Cells are strain gage transducers developed by Strainsert (U.S. Patent No. 3,695,096). They are manufacured utilizing the internal strain gage process perfected by Strainsert since 1960. The structure is simple and compact, consisting of an inner loading hub and an outer supporting flange bridged smoothly by a uniformly continuous solid shear web avoiding structural stress risers.Strain gages are installed and sealed inside small gage holes along the neutral axis of the web. Linearity and symmetry of output signal is obtained by equal straining of all shear gages in the bridge circuit.Low deflection and high natural frequency are obtained, along with high resistance to extraneous forces. Mechanical and dynamic properties are fully tabulated.
Mechanical Properties 0
FL100U_MP
Performance Specs Bridge Resistance
350 Ohms (Nominal)
Performance Specs Compensated Range
60 to 150 ºF
Performance Specs Effect On Output
±0.0030% Load/°F (Nominal)
Performance Specs Effect On Zero
±0.0035% FS/°F
Performance Specs Excitation Voltage
15V AC or DC (Maximum)
Performance Specs Hysteresis
General Purpose ±0.15% FS | Precision ±0.10% FS
Performance Specs Insulation Resistance
10,000 Megaohms (Minimum)
Performance Specs Non Linearity
General Purpose ±0.25% FS | Precision ±0.10% FS
Performance Specs Non Repeatability
±0.05% FS
Performance Specs Safe Static Overload Without Output Shift
200%FS
Performance Specs Safe Static Overload Without Structural Failur
250%FS
Specifications A Diameter
3-3/8 in
Specifications B Diameter
5-5/8 in
Specifications C Diameter
9-1/4 in
Specifications D Diameter
9-1/2 in
Specifications F Height
1-1/2 in
Specifications G Width
3-3/4 in
Specifications H Height
2-3/4 in
Specifications K Inside Diameter
13/16 in
Specifications K Outside Diameter
1-3/16 in
Specifications Lifting Holes Bc Diameter
NONE
Specifications Load Capacity
100,000 lb
Specifications L Diameter
7-1/4 in
Specifications N Depth Of Hole
7/8 in
