High-Performance USB Strain Gage Module
High-Performance USB Strain Gage Module
SKU:INS-859040
High-Performance USB Strain Gage Module for precise, high-speed measurements. Ideal for various applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
High-Performance USB Strain Gage Module
$399.99
Quantity: 1
Claim Your Seller Account
High-Performance USB Strain Gage Module
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

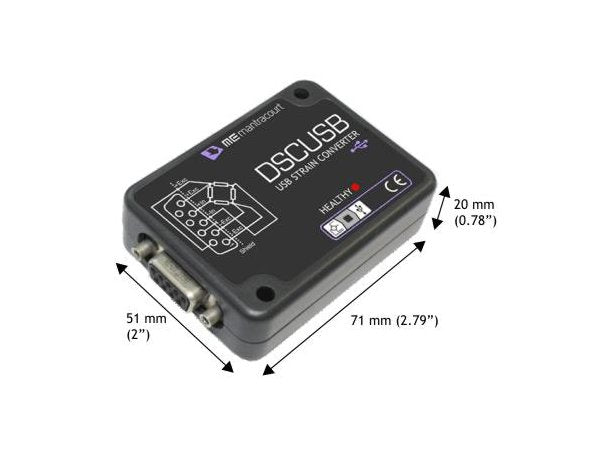

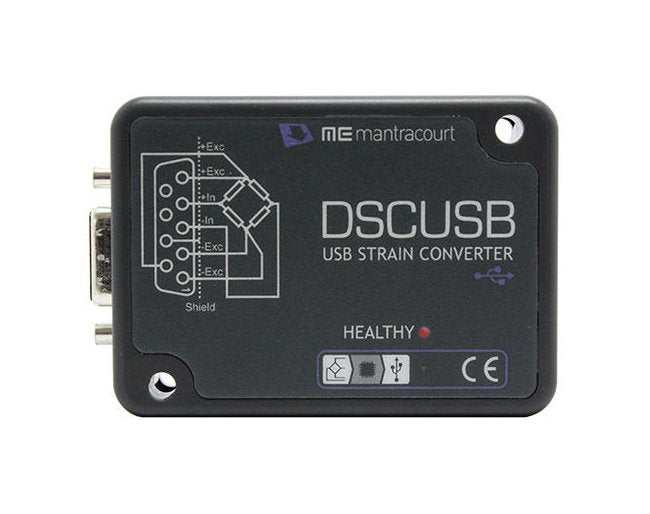

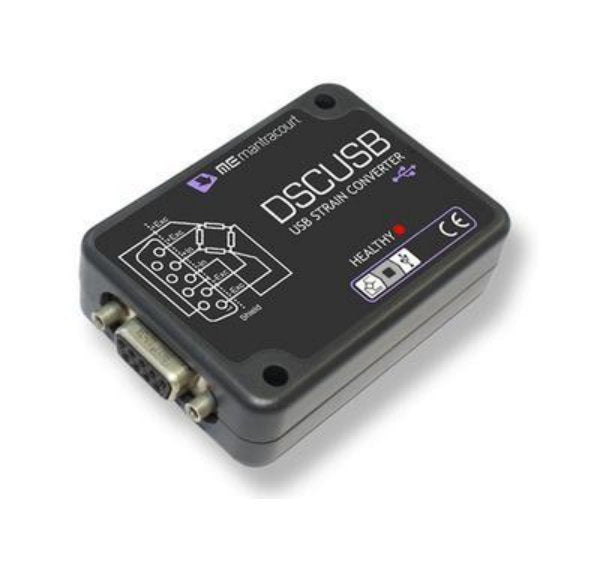

Experience unrivaled precision with the High-Performance USB Strain Gage Module (DSCUSB). This compact module offers exceptional measurement accuracy, resolution, and repeatability. Ideal for single or multiple sensor applications, it connects seamlessly to your PC for easy setup. With 200 samples per second at 18 bits resolution, it corrects nonlinear sensors and features an IP50-rated ABS enclosure. Boost efficiency with free Toolkit software for configuration and data logging. Maximize your testing capabilities with stable temperature and time performance, making it a must-have for desktop, test & measurement, research & development, and laboratory applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Desktop settingsTest & MeasurementR & DLaboratory
Features Benefits 0
Simple USB âPlug and Measureâ device connects directly to a PC. Free Toolkit software for simple configuration. Ability to communicate to multiple sensors. 200 samples per second at 18 bits noise free resolution. Allows for correction of nonlinear sensors. Powered from USB port. ASCII protocol.
Order Codes 0
DSCUSB â USB Strain Gage Module, with connectors and enclosure. D4 â DIN rail mounting kit
Specifications Bridge Excitation Voltage
4.5 to 5.25 VDC (5 VDC typical)
Specifications Bridge Measurement
4 wire
Specifications Bridge Resistance
80 to 5000 Ohms
Specifications Data Transmission Rate
115,200 bps
Specifications Humidity
0 to 95% RH
Specifications Internal Resolution
16 million counts/division
Specifications Non Linearity Before Linearization
25 ppm/F.R. (max., 5 ppm/F.R. typical)
Specifications Power Supply Current Usb 350 Ohm Bridge
68 mA to 75 mA, max.
Specifications Power Supply Voltage Usb
4.25 to 5.5 VDC (5 VDC typical)
Specifications Resolution At 100hz Noise Stable Over 100s
50,000 counts/divisions
Specifications Resolution At 10hz Noise Stable Over 100s
120,000 counts/divisions
Specifications Resolution At 1hz Noise Stable Over 100s
200,000 counts/divisions
Specifications Sensitivity
-3 to +3 mV/V (2.5 mV/V typical)
Specifications Sensitivity Version A
-4.5 to +4.5 mV/V
Specifications Signal Filtering
Dynamic recursive type - user programmable
Specifications Stability With Temperature Gain
3 to 5 ppm/°C (1.7 to 2.8 ppm/°F)
Specifications Stability With Temperature Offset
1 to 4 ppm/°C (0.6 to 2.2 ppm/°F)
Specifications Stability With Time Gain Ppmfr
30 (max., first year)
Specifications Stability With Time Offset Ppmfr
90 (max., 20 typical)
Specifications Temperature Range Operating
-40 to +85°C (-40 to +185°F)
Specifications Temperature Range Storage
-40 to +85°C (-40 to +185°F)
Specifications Usb Cable Length
5 Meters (16 feet), max.
