High-Performance UT/ET Series Common Mode Inductors
High-Performance UT/ET Series Common Mode Inductors
SKU:IND-0ce571
Prevent EMI and RFI with our high-performance UT/ET Common Mode Inductors. Low leakage flux and high self-resonant frequency for reliable performance. CSA, IEC, UL compliant.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
High-Performance UT/ET Series Common Mode Inductors
$12.99
Quantity: 1
Claim Your Seller Account
High-Performance UT/ET Series Common Mode Inductors
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your electronic equipment with our UT/ET Series Common Mode Inductors, designed to effectively prevent electromagnetic interference and radio frequency interference. Featuring low leakage flux, high self-resonant frequency, and high impedance, these inductors ensure reliable performance in power supply lines. With a compact size and compliance with CSA, IEC, and UL standards, these inductors are ideal for a wide range of applications where EMI and RFI protection is crucial.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
1.50 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

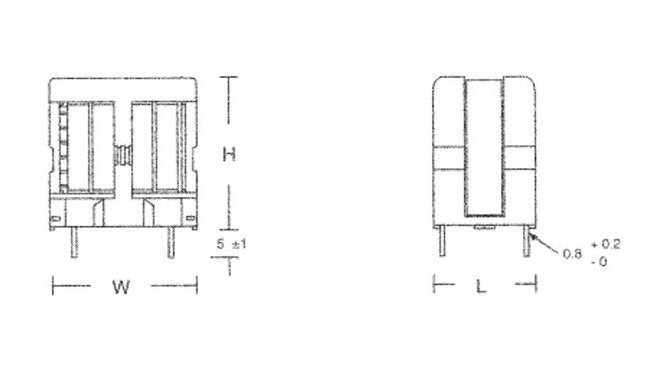

Specifications Height H
31 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
19.5 mm
Specifications Max Dcr
0.25 Ohm
Specifications Max Inductance Difference
150 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
3.60 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
0.88 oz
Specifications Width W
26.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
