The UT/ET Series Common Mode Inductors are indispensable for combating electromagnetic interference (EMI) and radio frequency interference (RFI) in power supply lines, ensuring the smooth operation of electronic equipment. Engineered for maximum efficiency, these inductors feature low leakage flux, a high self-resonant frequency, and high impedance at applicable frequencies. With low stray capacitance in section winding, these inductors guarantee reliability and performance under various conditions.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
0.50 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

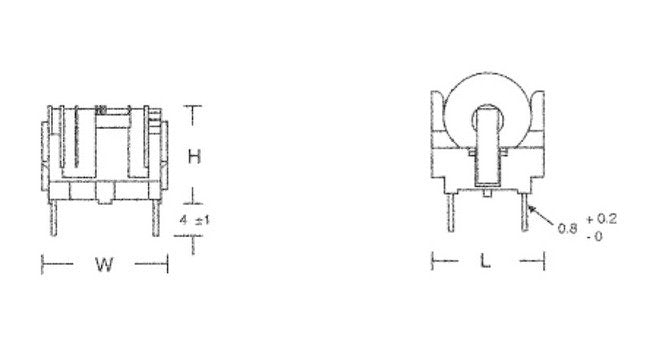

Specifications Height H
23.5 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
18.5 mm
Specifications Max Dcr
1.4 Ohm
Specifications Max Inductance Difference
300 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
9.00 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
0.52 oz
Specifications Width W
23 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
