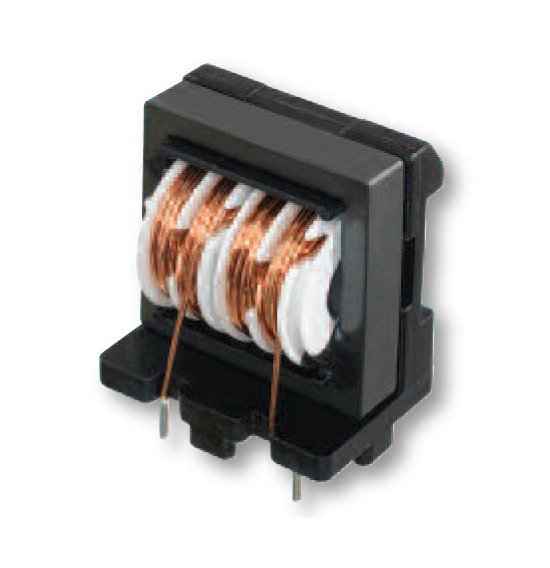

High-Performance UT/ET Series Common Mode Inductors
High-Performance UT/ET Series Common Mode Inductors
SKU:IND-df1459
Enhance EMI/RFI protection with UT/ET Series Inductors. Low leakage flux & high impedance. CSA, IEC, UL compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High-Performance UT/ET Series Common Mode Inductors
$24.99
Quantity: 1
Claim Your Seller Account
High-Performance UT/ET Series Common Mode Inductors
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UT/ET Series Common Mode Inductors are essential components for mitigating electromagnetic interference (EMI) and radio frequency interference (RFI) in a variety of electronic applications. With low leakage flux, high self-resonant frequency, and high impedance at applicable frequencies, these inductors provide optimal performance. Featuring a low stray capacitance in section winding, they ensure reliable operation of electronic equipment. Designed with a configuration type of Vertical and meeting industry standards such as CSA, IEC, and UL, these inductors are ideal for applications requiring superior EMI/RFI suppression.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
2.00 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding
Specifications Industry Standards
CSA | IEC | UL
Specifications Max Dcr
0.3 Ohm

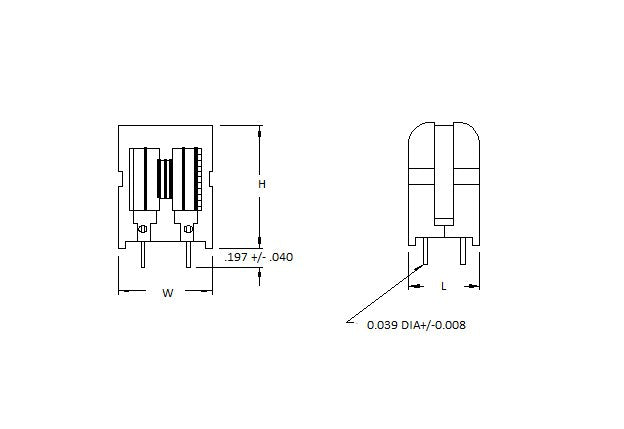

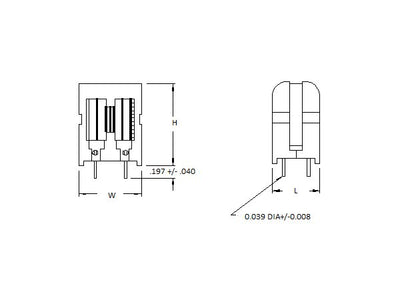

Specifications Max Height H
1.73 in | 43.94 mm
Specifications Max Inductance Difference
500 µH
Specifications Max Length L
1.06 in | 26.92 mm
Specifications Max Temperature Rise
45 ºC
Specifications Max Width W
1.46 in | 37.08 mm
Specifications Min Inductance
18.00 mH
Specifications Min Insulation Resistance
100 mOhm

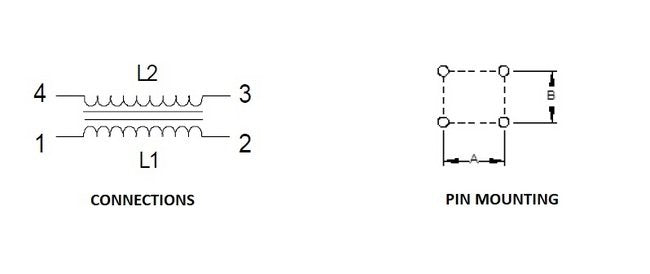

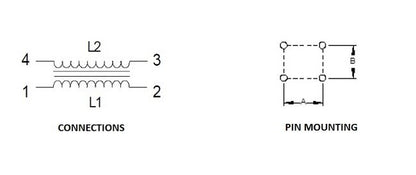

Specifications Nominal Pin Mounting A
0.827 in | 21.00 mm
Specifications Nominal Pin Mounting B
0.591 in | 15.01 mm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Rated Voltage Ac
250 V
Specifications Weight
2.60 oz
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
