High-Performance UT/ET Series Common Mode Inductors
High-Performance UT/ET Series Common Mode Inductors
SKU:IND-ae5337
Combat EMI and RFI effectively with our UT/ET Series Common Mode Inductors. High performance guaranteed!
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High-Performance UT/ET Series Common Mode Inductors
$24.99
Quantity: 1
Claim Your Seller Account
High-Performance UT/ET Series Common Mode Inductors
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

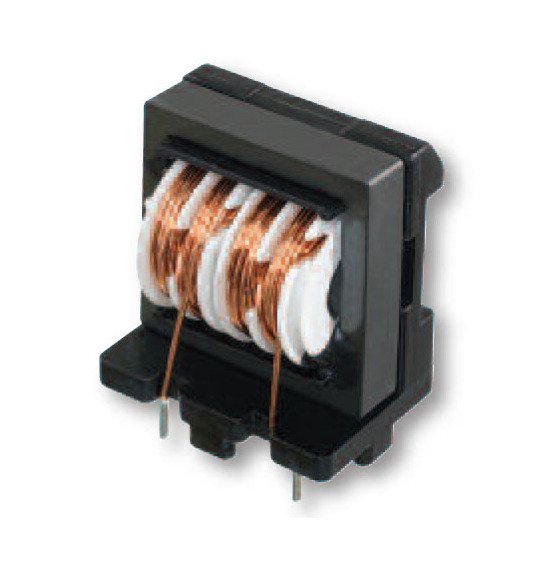

The UT/ET Series Common Mode Inductors are essential components designed to combat electromagnetic interference (EMI) and radio frequency interference (RFI) in diverse electronic applications. Featuring low leakage flux, high self-resonant frequency, and high impedance at applicable frequencies, these inductors effectively prevent malfunctioning of electronic equipment. With a vertical configuration and impeccable technical specifications including a max DCR of 0.2 Ohm, and a rated voltage of 250V, these inductors ensure reliable performance and signal integrity.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
2.50 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding
Specifications Industry Standards
CSA | IEC | UL
Specifications Max Dcr
0.2 Ohm

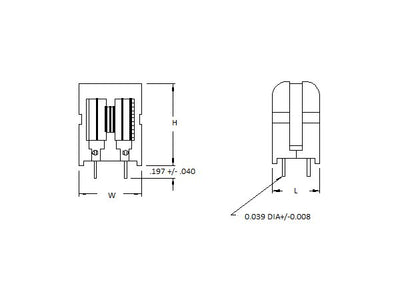

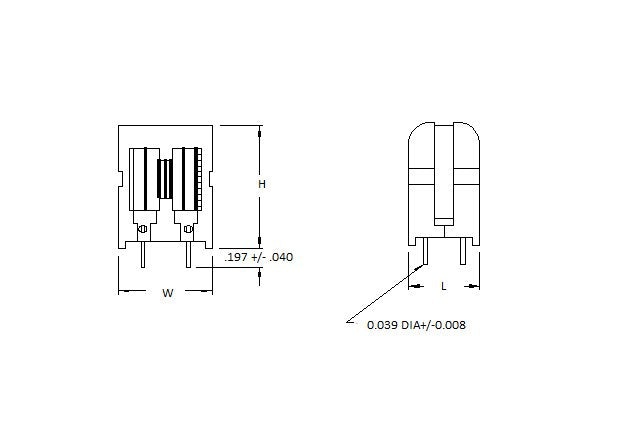

Specifications Max Height H
1.73 in | 43.94 mm
Specifications Max Inductance Difference
350 µH
Specifications Max Length L
1.06 in | 26.92 mm
Specifications Max Temperature Rise
45 ºC
Specifications Max Width W
1.46 in | 37.08 mm
Specifications Min Inductance
12.00 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Nominal Pin Mounting A
0.827 in | 21.00 mm
Specifications Nominal Pin Mounting B
0.591 in | 15.01 mm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Rated Voltage Ac
250 V
Specifications Weight
2.60 oz
Technical Notes 0

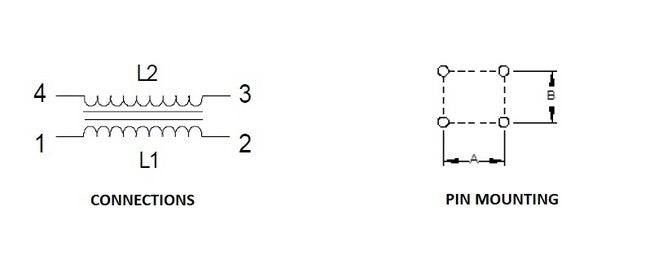

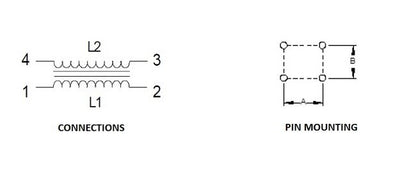

The inductance difference measures between the coil L1 and L2.
