The UT/ET Series Common Mode Inductors are indispensable for combating electromagnetic interference and radio frequency interference in a variety of applications. With features such as low leakage flux, high self-resonant frequency, high impedance at applicable frequencies, and low stray capacitance in section winding, these inductors ensure optimal performance and prevent malfunctioning of electronic equipment. Designed for reliability and precision, these inductors guarantee superior interference suppression and consistent operation.
Product Specifications
Specifications Configuration Type
Horizontal
Specifications Current Rating
2.00 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
High Impedance at Applicable Frequency | High Self-Resonant Frequency | Low Leakage Flux | Low Stray Capacitance in Section Winding

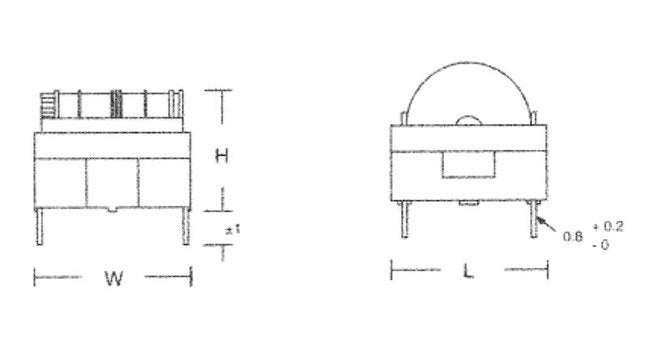

Specifications Height H
25 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
30 mm
Specifications Max Dcr
0.25 Ohm
Specifications Max Inductance Difference
200 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
10.00 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
24.0 mm
Specifications Pin Mounting B
20.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
1.40 oz
Specifications Width W
30 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
