High-Performance Vee Bottom Grooving Tool, 0.261 / 0.273 in
High-Performance Vee Bottom Grooving Tool, 0.261 / 0.273 in
SKU:GRO-a8d846
Precision Vee Bottom grooving tool, 0.261-0.273 in thickness, for superior performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High-Performance Vee Bottom Grooving Tool, 0.261 / 0.273 in
$49.99
Quantity: 1
Claim Your Seller Account
High-Performance Vee Bottom Grooving Tool, 0.261 / 0.273 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Vee Bottom grooving tool is designed for precise dimensional specifications, with a thickness range of 0.261 to 0.273 inches, a radius of 1/4 inch, and an angle of 90 degrees. It offers a width of 0.417 to 0.423 inches, and exceptional flatness at 0.060 to 0.070 inches. Available in custom grades upon request, this tool ensures high-quality grooving performance for various applications.

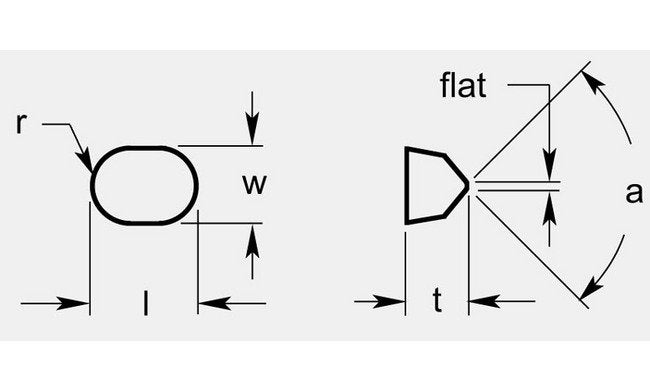

Product Specifications
Dimensional Specification A
90 º
Dimensional Specification Angle A
90 º
Dimensional Specification Flat
0.060 / 0.070 in
Dimensional Specification L
0.494 / 0.506 in
Dimensional Specification Radius R
1/4 in
Dimensional Specification Thickness T
0.261 / 0.273 in
Dimensional Specification Width W
0.417 / 0.423 in
Grade Availability Grade Availability
Available on Request
