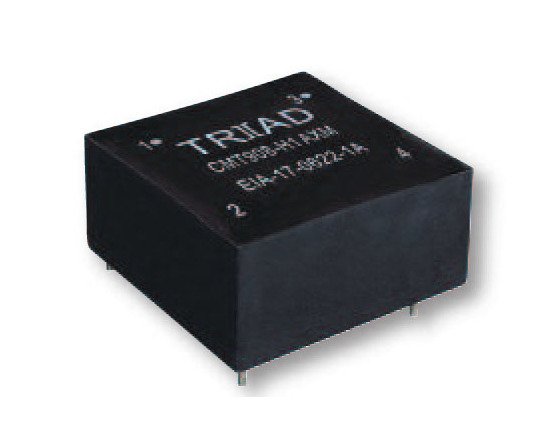

Experience superior noise elimination and precise differential mode filtering with the CMT908 Series Common Mode Inductors. Designed to meet regulatory requirements, these inductors minimize AC line interference caused by high frequency switching power supplies. With a minimum inductance of 16.00 mH, RMS current of 2.60 A, and compact UL-rated construction, these inductors are ideal for power supply applications. Hi-pot tested at 2500 VRMS.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
A CMT908-KIT is available which includes one of each of the above listed components.

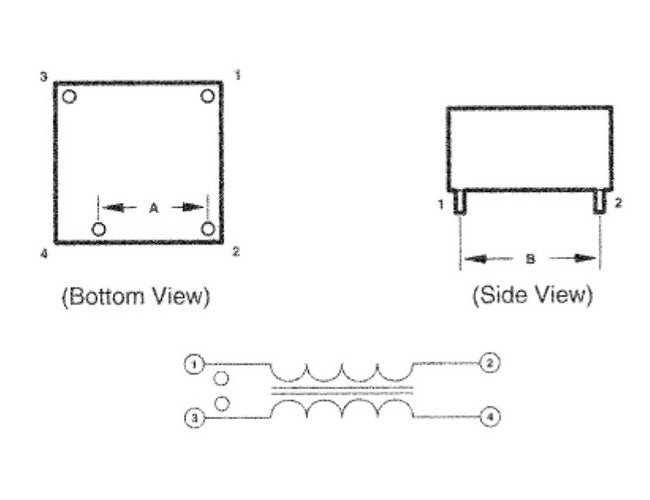

Specifications Dimension A
1.08 in
Specifications Dimension B
1.28 in
Specifications Dimension H
0.80 in
Specifications Dimension L
1.5 in
Specifications Dimension W
1.5 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.160 Ohm
Specifications Min Inductance
16.00 mH
Specifications Min Leakage
180.0 µH
Specifications Rms Current
2.60 A
Specifications Weight
0.120 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
