The TCXO 10 to 52 Megahertz (MHz) Frequency Temperature-Compensated Crystal Oscillator from Greenray Industries is a top-of-the-line reference oscillator designed for precision timing applications. This compact oscillator boasts low noise, minimal power consumption, and exceptional stability over a wide temperature range. With typical frequency stability ranging from 0.1 ppm to 1.0 ppm across various temperatures, this TCXO ensures reliable performance in demanding environments. Additionally, it features a rugged construction that can withstand high shock and vibration levels, making it ideal for telecommunications, military, and aerospace applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Applications
TelecommunicationsHigh-shock electronicsMobile radioMobile instrumentationAirborne communicationsWireless communicationsMicrowave receivers
Direct Current Dc Supply Maximum Direct Current Dc Supply Voltag
3.15 V | 3.6 V | 5.25 V
Direct Current Dc Supply Maximum Input Current For Clipped Sinew
3 mA
Direct Current Dc Supply Maximum Input Current For Metal Oxide S
6 mA
Direct Current Dc Supply Minimum Direct Current Dc Supply Voltag
2.85 V | 3.0 V | 4.75 V
Direct Current Dc Supply Direct Current Dc Supply Voltag
3.0 V | 3.3 V | 5.0 V
Electrical Characteristics Maximum Acceleration Sensitivity
0.7 ppb/g | 2 ppb/g
Electrical Characteristics Maximum Aging Per Year
±3 ppm

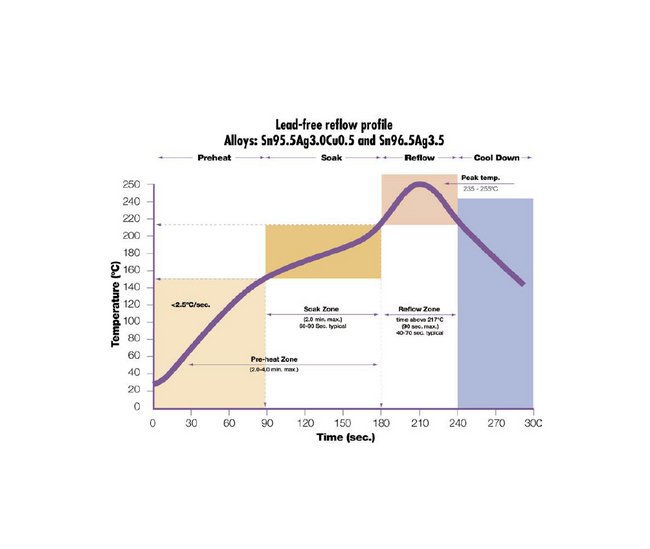

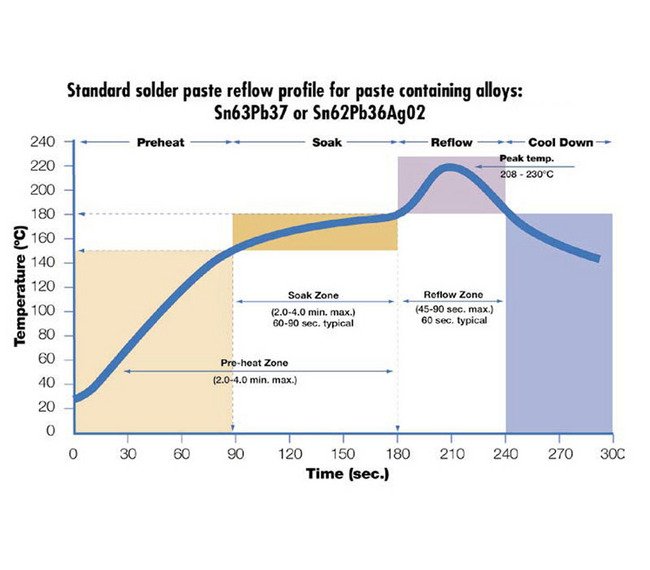

Electrical Characteristics Maximum Frequency Versus Reflow After
1 ppm
Electrical Characteristics Maximum Nominal Frequency At 25 Degre
52 MHz
Electrical Characteristics Minimum Nominal Frequency At 25 Degre
10 MHz
Electrical Characteristics Note For Electronic Frequency
EFC = 0 to VDD Positive slope
Electrical Characteristics Aging Per Year
±1 ppm
Electrical Characteristics Electronic Frequency Control
8 ppm
Electrical Characteristics Frequency Stability At 20 To
0.1 ppm
Electrical Characteristics Frequency Stability At 40 To
0.5 ppm | 1.0 ppm
Environmental Shock
Per MIL-STD-202G, Method 213, Condition D
Environmental Vibration
Per MIL-STD-202G, Method 214, Condition I-F
Features Features

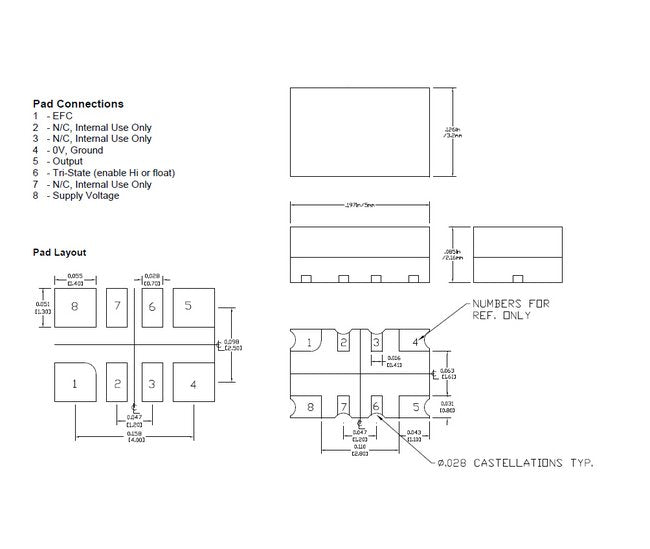

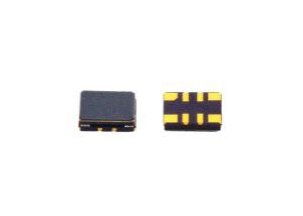

Small and rugged 5.0 x 3.2 mm packageWithstand vibration, and high shock up to 30,000 gTight temperature stability of ± 0.1 ppm over -20 to +70 ºCExcellent long-term aging < 5 ppm over 10 yearsLow acceleration sensitivity < 0.7 ppb/gLow power consumption, as low as 2mA, enable reliable, battery-operated performance gain.Low phase noise
Radio Frequency Rf Output Sinewave Maximum Level At 33 Volt V Su
+ 0.2 V "0" Level
Radio Frequency Rf Output Sinewave Maximum Level At 50 Volt V Su
+ 0.2 V "0" Level
Radio Frequency Rf Output Sinewave Maximum Symmetry
60 %
Radio Frequency Rf Output Sinewave Minimum Level
+0.8 Vpp
Radio Frequency Rf Output Sinewave Minimum Level At 33 Volt V Su
+ 2.8 V "1" Level
Radio Frequency Rf Output Sinewave Minimum Level At 50 Volt V Su
+ 4.2 V "1" Level
Radio Frequency Rf Output Sinewave Minimum Symmetry
40 %
Radio Frequency Rf Output Sinewave Load
15 pF
Radio Frequency Rf Output Sinewave Load At 10 Kiloohm Ko
10 pF
Radio Frequency Rf Output Sinewave Symmetry
50 %
Specifications Industry Standards
RoHS (Restriction of Hazardous Substances) Compliant
Specifications Maximum Frequency
52 MHz
Specifications Minimum Frequency
10 MHz
