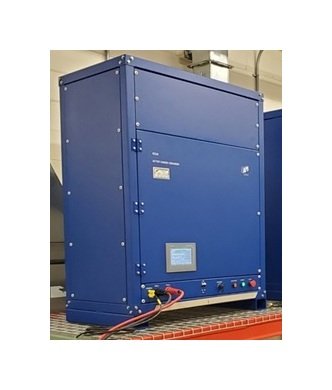

The Applied Power Systems BCE20K Battery Charging Equipment is a high-power, high-efficiency solution designed for EV charging, facility power backup, and energy storage applications. This programmable equipment offers seamless CC to CV mode transition, battery temperature sense compensation, built-in diagnostics, and fault protection. It supports multiple battery chemistries and provides selectable charge profiles for various battery types, ensuring optimal performance and reliability. With PLC-controlled charging algorithms and precise discharge control, the BCE20K is a rugged and reliable choice for institutions requiring a versatile and efficient battery charging solution.
Product Specifications
Additional Information Additional Information

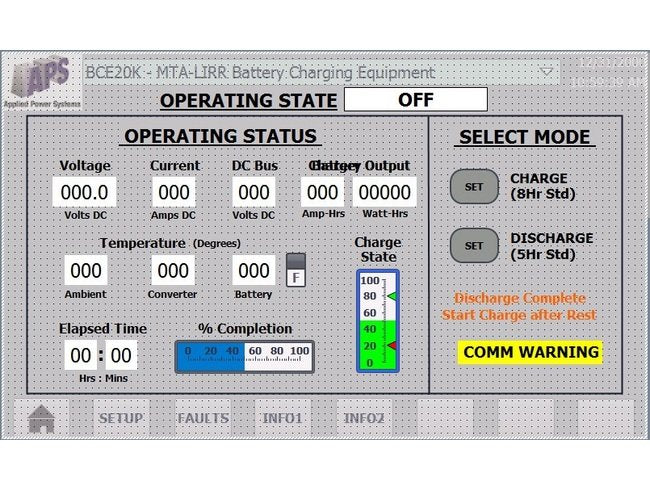

Programmable battery charging equipment for facility energy storage application. Supports a wide range of battery power levels and battery chemistries.Designed and built in the USA, the BCE20K provides automatically controlled, high performance battery charger and discharger functions.The BCE20K is designed for EV, transport and facility energy storage applications, programmable for multiple battery chemistries with selectable charge profiles for Lead-Acid, NiCad, NiMH and Li-Ion battery types. This high frequency charger uses software-defined profiles to optimize the charge cycle for different battery types.The BCE20K implements PLC controlled charging algorithms to perform closed loop charging while monitoring the charge cycle time, battery charging current, voltage and temperature. The PLC HMI provides operator data entry and status monitoring.The DC-DC discharger converter and high power load provide controlled discharge of the battery stack while the PLC provides precise control of the battery current and voltage discharge profile.The internal PLC controls all operating functions and provides timing, status display, built in diagnostics, fault protection and safety features for the charging and discharging operations. The BCE20K supports batteries from 12V to 96V, up to 150 Amps.
Alternating Current Input Alternating Current Input Voltage
480 V
Alternating Current Input Input Alternating Current Power Factor
â¥0.90
Alternating Current Input Input Frequency Range
57 to 63 Hz
Alternating Current Input Input Protection
Internal FuseBlock
Alternating Current Input Input Voltage Frequency
60 Hz
Alternating Current Input Maximum Input Current
25 A
Battery Discharge Load At Ta25 Degree Celsius C Temperature Curr
1 %
Battery Discharge Load At Ta25 Degree Celsius C Temperature Load
0 to 100 A
Battery Discharge Load At Ta25 Degree Celsius C Temperature Over
Electronic
Battery Discharge Load At Ta25 Degree Celsius C Temperature Shor
Internal FusionBlock
Direct Current Output At Ta25 Degree Celsius C Temperature Batte
Selectable
Direct Current Output At Ta25 Degree Celsius C Temperature Direc
Electronic
Direct Current Output At Ta25 Degree Celsius C Temperature Effic
90 %
Direct Current Output At Ta25 Degree Celsius C Temperature Outpu
0 to 150 A
Direct Current Output At Ta25 Degree Celsius C Temperature Selec
12 V | 24 V | 48 V | 72 V | 96 V
Direct Current Output At Ta25 Degree Celsius C Temperature Volta
1 %
Environmental Non Condensing Humidity
0 to 95 %
Environmental Operating Temperature
0 to +70 ºC
Environmental Storage Temperature
-40 to +85 ºC
Features Features
High Power, high efficiency, high frequency Battery Charger and Discharger.For EV Charging, Transit, Facility Power Backup, Battery Forming, and Energy Storage ApplicationsRugged, Reliable, Field Proven ConstructionProgrammable DC Output for 12 V, 24 V, 48 V, 72V & 96 V battery stacks.Seamless CC to CV mode transition.Output Current LimitingBattery Temperature Sense CompensationBuilt-in Diagnostics and Fault ProtectionLocal and Remote ControlLocal PLC control with HMI display of status & operating parameters.Remote control Ethernet port.
Note Note
Consult factory for custom configurations.
Physical Specifications Depth
24 in
Physical Specifications Height
54 in
Physical Specifications Weight
725 lb
Physical Specifications Width
42 in
Technical Specs Brands
Applied Power Systems, Inc.
