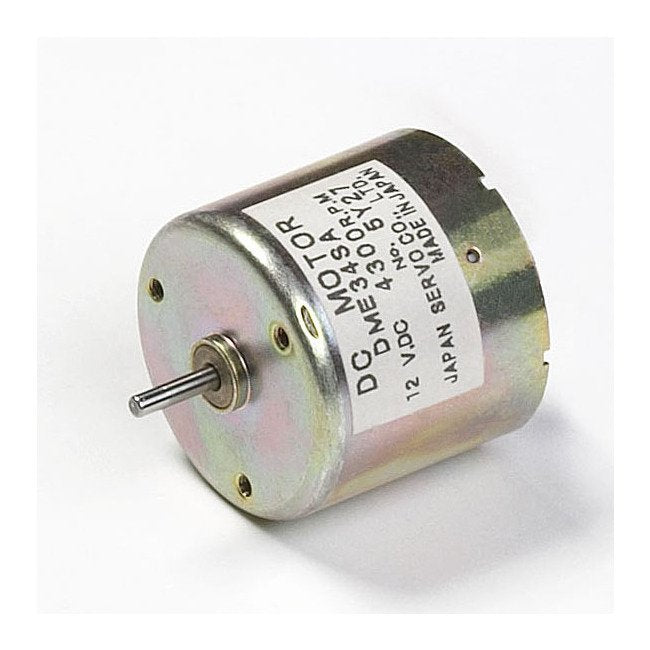

High-Power DME34 Motors with Pulse Generators
High-Power DME34 Motors with Pulse Generators
SKU:PER-1dc15a
High-power DME34 Motors: Compact, durable, and versatile for a variety of applications. Meet institutional procurement standards.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
High-Power DME34 Motors with Pulse Generators
$189.99
Quantity: 1
Claim Your Seller Account
High-Power DME34 Motors with Pulse Generators
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series Motors with Pulse Generators offer compact size and high power ranging from 0.7 W to 26 W. With a variety of line ups and gear head options, these motors feature long-life durability, high output, and strength. Designed for over 1 million intermittent cycles and continuous operation of 1000 hours, they provide high radial load capacity and low noise levels. Additionally, these motors come with a selection of gear heads, magnetic revolution sensors, noise filters, and more, ensuring they meet diverse institutional procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Gear-Head Design | Magnectic Type Revolution Sensor | Motor Selection Guide | Optical Type Revolution Sensor | Untitled-8.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
310 mA | 0.31 A
Specifications L
35.0 mm
Specifications Model Code
BB
Specifications Motor Frame Size
34 mm | 1.339 in
Specifications No Load Current
0.04 A
Specifications No Load Speed
5000 r/min
Specifications Product Type
DC Motor
Specifications Rated Output
4.5 W
Specifications Rated Speed
3700 r/min
Specifications Rated Torque
11.8 mN·m | 1.67 oz·in
Specifications Rated Voltage
24 V
Specifications Series
DME34
Specifications Stall Torque
45 mN·m | 6.39 oz·in
Specifications Weight
110 g | 0.24 lb
Torque Curve 0
