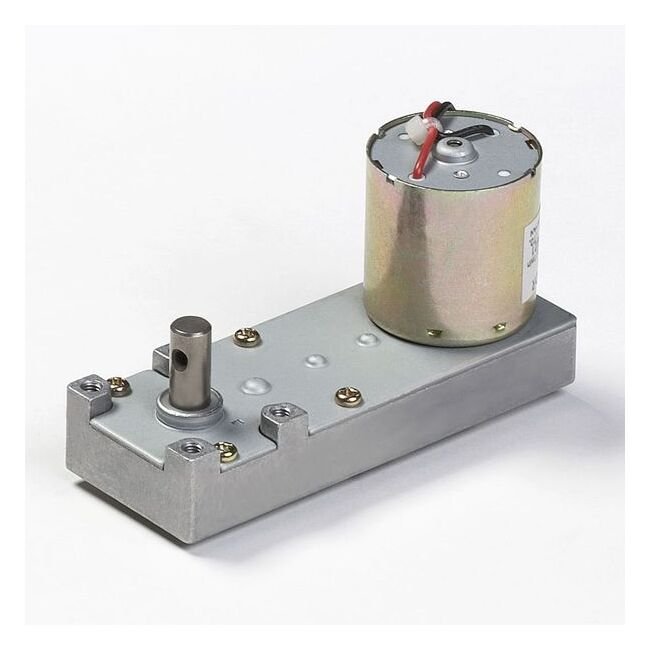

High-Power DME34 Series DC Motor with Gearbox L
High-Power DME34 Series DC Motor with Gearbox L
SKU:PER-8d6cf7
Compact and powerful DME34 Series DC Motor with Gearbox L, optimized for durability, high output, and low noise, meeting diverse institutional needs.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
High-Power DME34 Series DC Motor with Gearbox L
$149.99
Quantity: 1
Claim Your Seller Account
High-Power DME34 Series DC Motor with Gearbox L
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series Motors with Gearbox L offers a compact design with high power output ranging from 0.7 W to 26 W. With a wide range of gear heads available, including 32 Dia to 80 Sq and more, it delivers long-life performance with over 1 million cycles of intermittent operation. Featuring optimized brush design for durability, high heat dissipation for increased output, and robust construction for high radial load capacity. This motor meets institutional procurement needs with its low noise, increased insulation, and a variety of gear heads and reduction ratios to suit diverse applications. Additionally, options like magnetic revolution sensor and noise filter enhance functionality.
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
200 mA | 0.2 A
Specifications Gear Ratio
120
Specifications L
44.3 mm
Specifications Model Code
SA
Specifications Motor Frame Size
38 x 100 mm | .866 x 3.937 in
Specifications Product Type
DC Motor with Gearbox L
Specifications Rated Output
1.3 W
Specifications Rated Speed
27 r/min
Specifications Rated Torque
38.88 oz·in | 0.280 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME34
Specifications Weight
270 g | 0.6 lb
