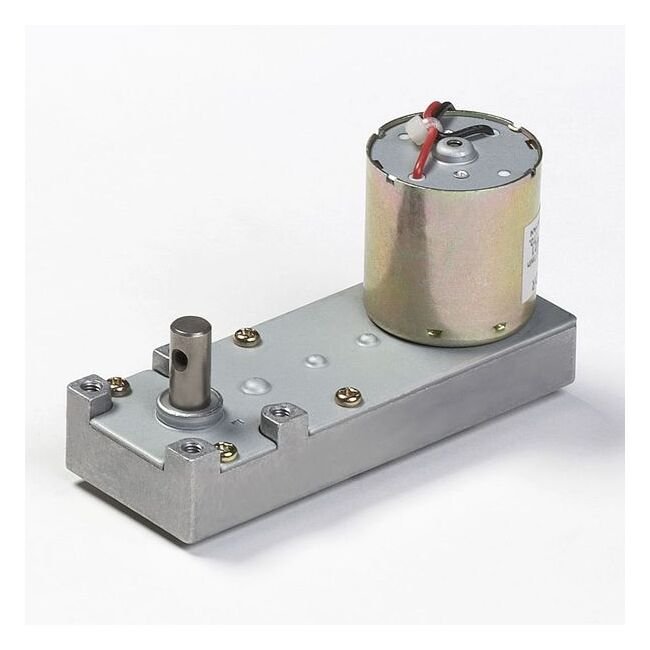

High-performance DME34 Series Motors with Gearbox L - Ideal for industrial applications requiring durability, efficiency, and precise operation.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
High-Power DME34 Series DC Motors with Gearbox L
$149.99
Quantity: 1
Claim Your Seller Account
High-Power DME34 Series DC Motors with Gearbox L
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High-Power DME34 Series Motors with Gearbox L offer exceptional performance and durability for a wide range of applications. With power ranging from 0.7 W to 26 W and a variety of gear heads available, these motors are designed for longevity and efficiency. Featuring optimized brush design for long-life operation, high heat dissipation for increased output, and robust construction for high strength, these motors meet rigorous institutional procurement standards. With low noise, increased insulation, and a wide selection of gear heads and reduction ratios, the DME34 Series Motors are a versatile choice for various industrial needs.
Product Specifications
Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
410 mA | 0.41 A
Specifications Gear Ratio
255
Specifications L
59.8 mm
Specifications Model Code
KB
Specifications Motor Frame Size
38 x 100 mm | .866 x 3.937 in
Specifications Product Type
DC Motor with Gearbox L
Specifications Rated Output
7 W
Specifications Rated Speed
18.6 r/min
Specifications Rated Torque
138.87 oz·in | 0.98 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME34
Specifications Weight
310 g | 0.68 lb
