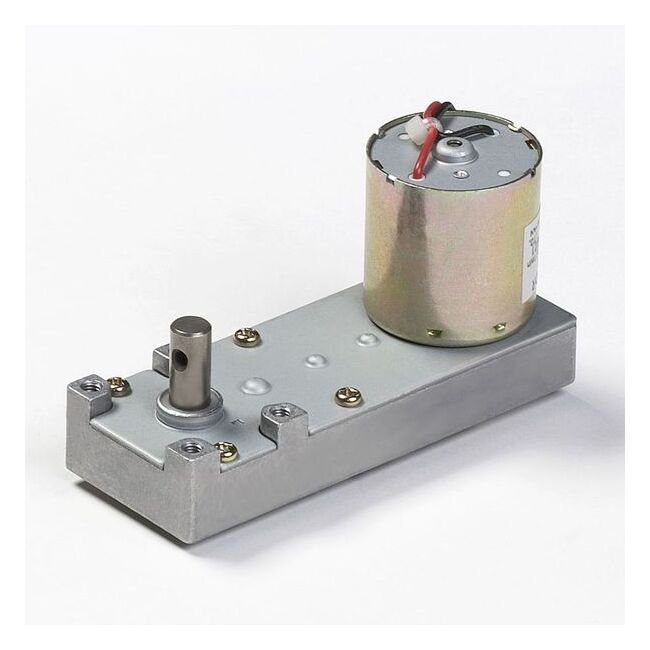

High-Power DME34 Series Motor with Gearbox L

High-Power DME34 Series Motor with Gearbox L

SKU:PER-2e4b2f

Powerful and reliable DME34 Series Motor with Gearbox L for high-performance needs.

Regular price $349.99
Regular price Sale price $349.99
Sale

Initiate Order

High-Power DME34 Series Motor with Gearbox L

High-Power DME34 Series Motor with Gearbox L

$349.99

Quantity: 1

Claim Your Seller Account

High-Power DME34 Series Motor with Gearbox L

High-Power DME34 Series Motor with Gearbox L

$349.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The High-Power DME34 Series Motor with Gearbox L offers a compact design with exceptional power ranging from 0.7 W to 26 W. With a wide range of gear heads available, including 32 Dia-80 Sq options, this motor ensures high performance and reliability. Its optimized brush design allows for over 1 million cycles of intermittent operation, while its robust construction and large diameter output shaft provide high radial load capacity. The motor features high heat dissipation, heat resistance, and low noise, along with increased insulation. Additionally, options for magnetic revolution sensors and noise filters are available, making it a versatile choice for various applications.

Product Specifications

Additional Information 0
Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
200 mA | 0.2 A
Specifications Gear Ratio
30
Specifications L
44.3 mm
Specifications Model Code
SA
Specifications Motor Frame Size
38 x 100 mm | .866 x 3.937 in
Specifications Product Type
DC Motor with Gearbox L
Specifications Rated Output
1.3 W
Specifications Rated Speed
110 r/min
Specifications Rated Torque
9.72 oz·in | 0.07 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME34
Specifications Weight
270 g | 0.6 lb
